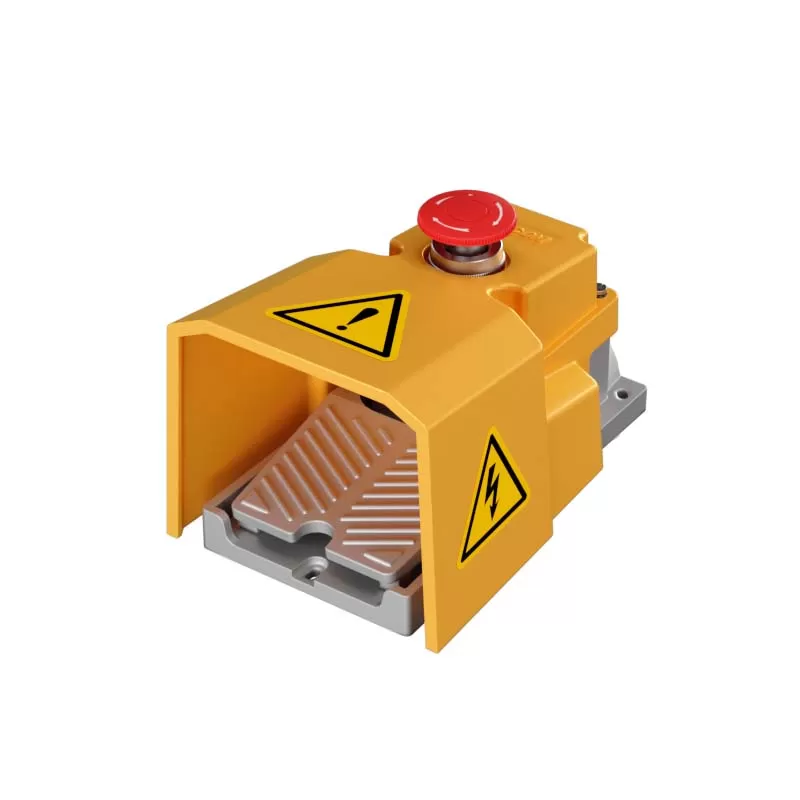

HRF-HD3 Series heavy-duty aluminum alloy foot switch is a versatile,
wide-range control solution. Finished in a high-visibility warning yellow
plastic coating, it provides superior resistance to friction, thermal fluctuations,
and chemical corrosion. This rugged design ensures high safety standards
and reliable protection performance.
  | |
 Contact Mode | No mark: 1C(1a + 1b) 2: 2C(2a + 2b) |
 Function | No mark: Reset type R: Self-locking Alternating L: Anti-misoperation device |
 Protection Type | No mark: Top cover(drive type) F: Without protective cover N: Top cover NX: Three shields NS: Three shields + Front baffle |
 Color | No mark: Yellow C: Grey A: Orange |
 Additional Device | No mark: Without RW: Handle ring RC: Movable handle (400mm) ES: Emergency stop switch PL:LED indicator light RE: Movable handle (630 mm) + Emergency stop switch EL: Movable handle (630 mm) + LED indicator light + Emergency stop switch |
 LED Voltage | D1: 110VDC A1: 110VAC A2: 220VAC |
 Connector | No mark: Standard (Without) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: Without cable 2: 18AWG * 2m 3: 18AWG * 3m 5: 18AWG * 5m |
Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-HD3 |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3F |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3LF |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3LF-RW |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3N |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3LN |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3NX |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3NS |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3NX-RC |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3NC-RE |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3LX |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3NX-PL |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3NX-ES |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD3 | HRF-HD3F | HRF-HD3LF |
 |  |  |
| HRF-HD3LF-RW | HRF-HD3N | HRF-HD3LN |
 |  |  |
| HRF-HD3NX | HRF-HD3NS | HRF-HD3NX-RC |
 |  |  |
| HRF-HD3NC-RE | HRF-HD3LX |
 |  |
| HRF-HD3NX-PL | HRF-HD3NX-ES |
 |  |
