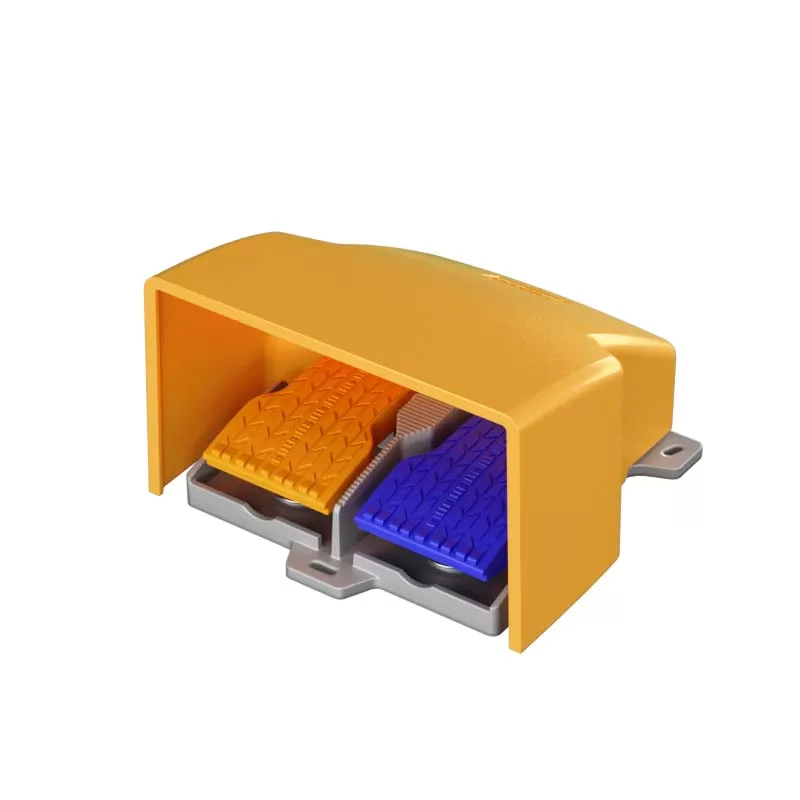

HRF-HD5 Series heavy-duty aluminum alloy foot switch is a versatile,
wide-range control solution. Finished in a high-visibility warning yellow
plastic coating, it provides superior resistance to friction, thermal fluctuations,
and chemical corrosion. This rugged design ensures high safety standards
and reliable protection performance.
  | |
 Contact Mode | No mark: 1C(1a + 1b) 2: 2C(2a + 2b) |
 Protection Type | F: Without protective cover NX: Three shields NS: Three shields + Front baffle |
 Additional Device | No mark: Without RW: Handle ring RC: Movable handle (400mm) RE: Movable handle (630 mm) + Emergency stop switch EL: Movable handle (630 mm) + LED indicator light + Emergency stop switch |
 LED Voltage | D4: 24VDC/AC D1: 110VDC A1: 110VAC A1: 110VAC |
 Connector | No mark: Standard (Without) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: Without cable 2: 18AWG * 2m 3: 18AWG * 3m 5: 18AWG * 5m |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-HD5F |  | 2C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD5F-RW |  | 2C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD5NX |  | 2C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD5NS |  | 2C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD5NX-RC |  | 2C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD5NX-RE |  | 2C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
*Forothercustomizedmodels,pleasecontactwith usdirectly

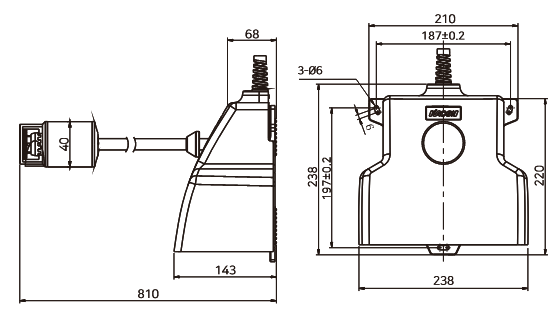

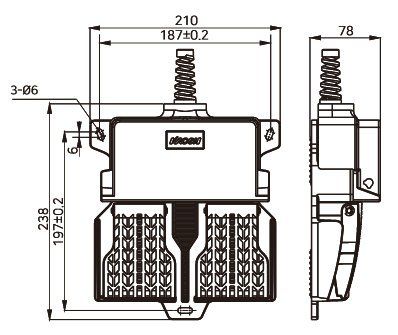

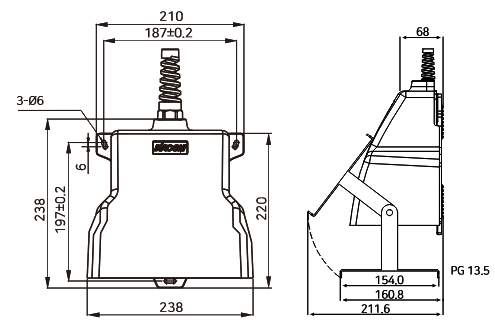

| HRF-HD5F | HRF-HD5F-RW | HRF-HD5NX |
 |  |  |

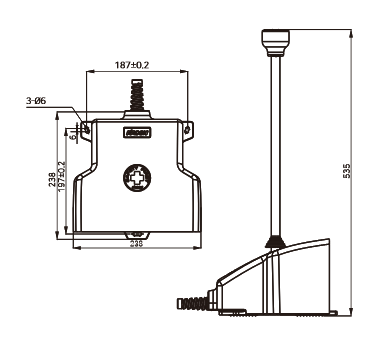

| HRF-HD5NS | HRF-HD5NX-RC | HRF-HD5NX-RE |
 |  |  |
