HRF-HD8 Series heavy-duty aluminum alloy foot switch is a versatile,
wide-range control solution. Finished in a high-visibility warning yellow
plastic coating, it provides superior resistance to friction, thermal
fluctuations, and chemical corrosion. This rugged design ensures
high safety standards and reliable protection performance.
  | |
 Protection Type | S: Basic type L: Anti-misoperation device |
 Operator Type | 1: Basic type 8: Safe type 3: Self-locking Alternating 2: 3-Position |
 Built-in Switch | 1: KSB1(20A) 2: Z15G-10B(15A) 3: V15F-060C(10A) |
 Contact Mode | 1: 1Zb & 1C(1a + 1b) 2: 2a 3: 2Zb & 2C(2a + 2b) 4: 2b |
 Additional Device | No mark: Without RC: Movable handle (400mm) PL:LED indicator light ES: Emergency stop switch RE: Movable handle (630 mm) + Emergency stop switch EL: Movable handle (630 mm) + LED indicator light + Emergency stop switch |
 LED Voltage | D4: 24VDC/AC D1: 110VDC A1: 110VAC A2: 220VAC |
 Connector | No mark: Standard (Without) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: Without cable 1M: 18AWG * 1m N: 18AWG * Nm 10: 18AWG * 10m |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-HD8 |  | 1C | 20A 250VAC | KSB1 (UL,CE,CUL, KC, CCC certified) |  | Aluminum die-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP67 |
| HRF-HD8RL |  | 1C | 20A 250VAC | KSB1 (UL,CE,CUL, KC, CCC certified) |  | Aluminum die-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP67 |
| HRF-HD8RE |  | 1C | 20A 250VAC | KSB1 (UL,CE,CUL, KC, CCC certified) |  | Aluminum die-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP67 |

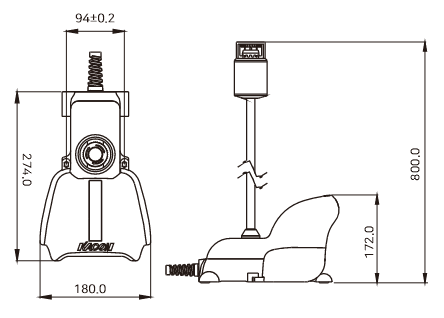

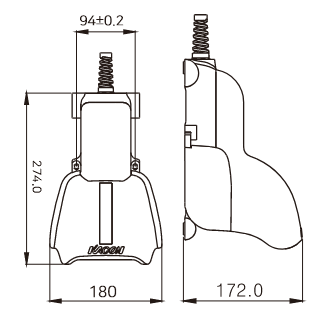

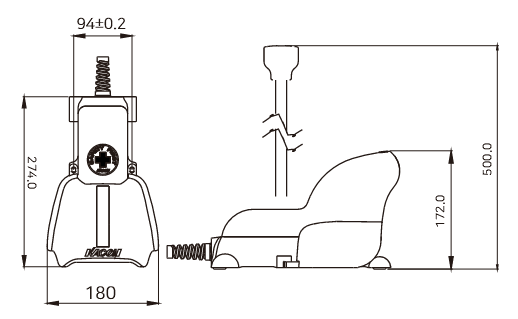

| HRF-HD8 | HRF-HD8RL | HRF-HD8RE |
 |  |  |
