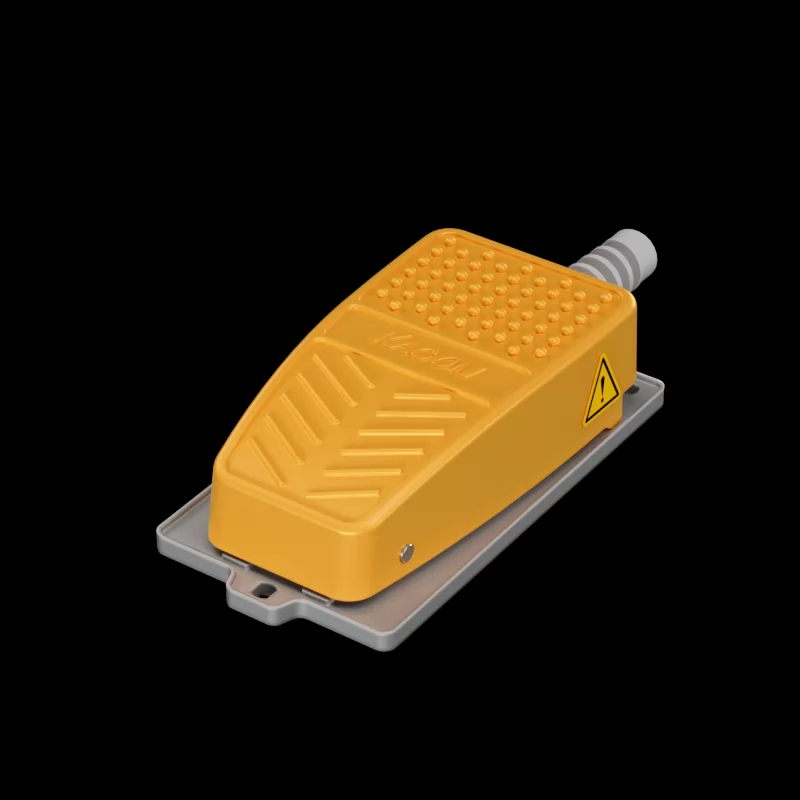

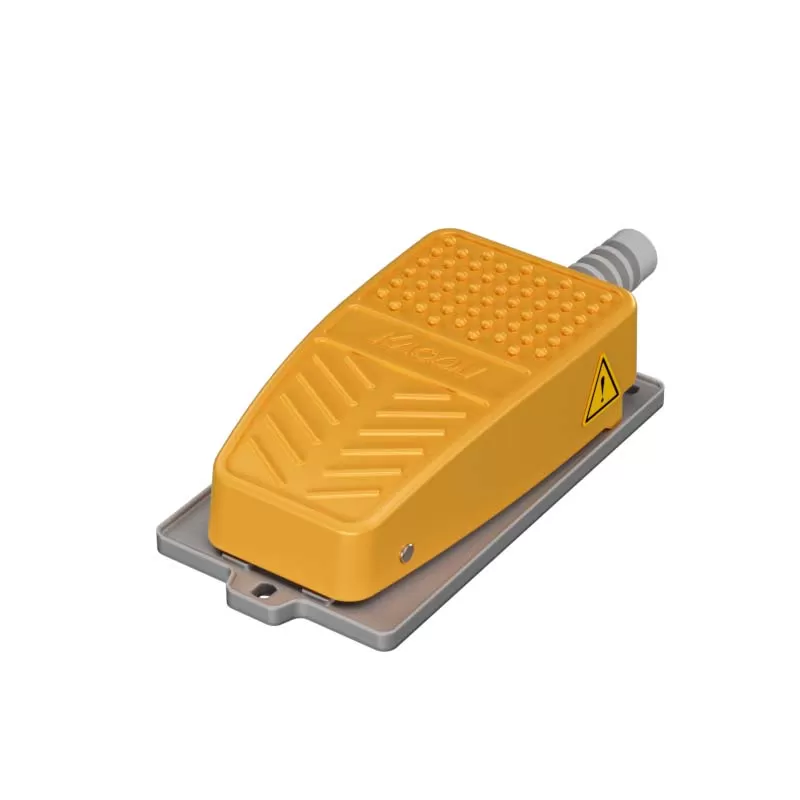

HRF-MD2 Series aluminum alloy foot switch features a die-cast housing
with a protective plastic coating. This durable construction ensures reliable
resistance to harsh environmental conditions, wear, and aging. The cable
outlet is fitted with a spring-loaded strain relief connector, providing high
tensile strength and superior protection.
  | |
 Structure Type | No mark: Rear-mounted Shaft X: Front-mounted Shaft S: Rear support base |
 Function | 1: Standard 2: Multi-section 3: Self-locking Alternating 4: Waterproof IPX7 5: USB |
 Cable | 2: 20AWG * 2m 3: 20AWG * 3m 5: 20AWG * 5m C: Connector type |
 Contact Mode | No mark: 1C 1: Non-switching 2: 2C 3: 1A 4: 2A |

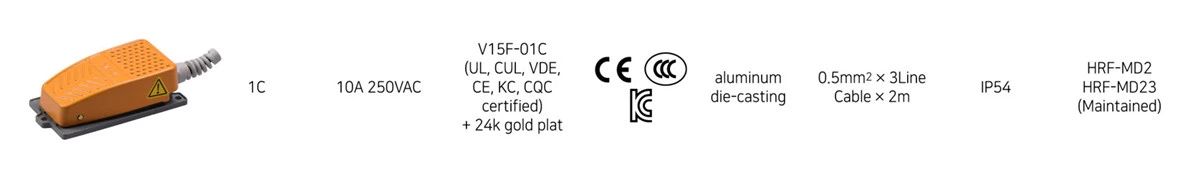

| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
HRF-MD2 HRF-MD23 |
| 1C | 8A 250VAC | V15F-01C (UL,CUL,VDE, CE,KC,CQC certified) |
| Aluminum die-casting | RVV 20AWG ×3Line Cable×2m | IP54 |
| HRF-MD2S |
| 1C | 8A 250VAC | V15F-01C (UL,CUL,VDE, CE,KC,CQC certified) |
| Aluminu mdie-casting | RVV 20AWG ×3Line Cable×2m | IP54 |
*Forothercustomizedmodels,pleasecontactwith usdirectly

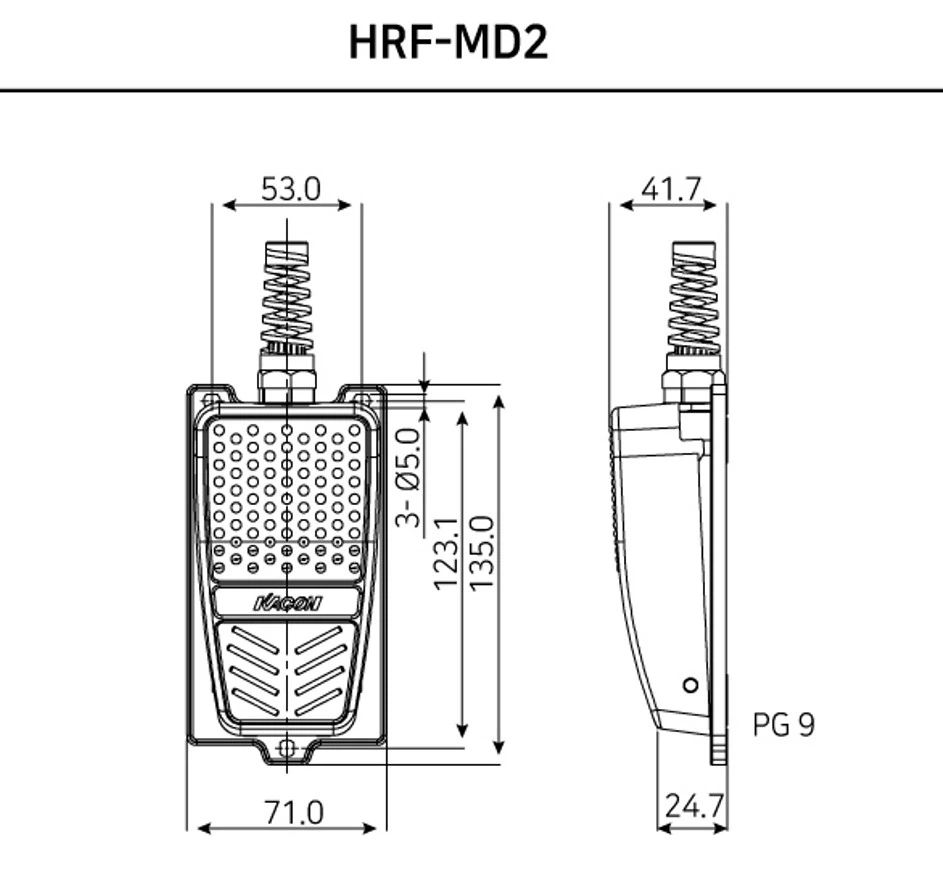

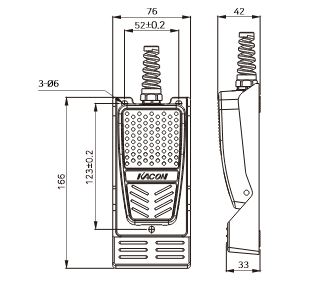

| HRF-MD2 / HRF-MD23 | HRF-MD2S |
|
|
