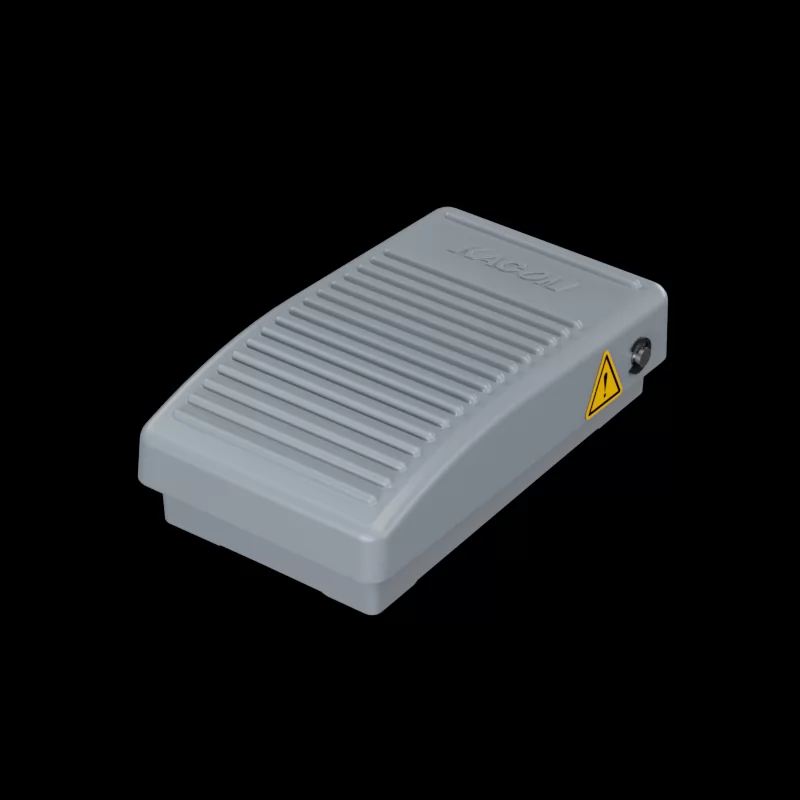

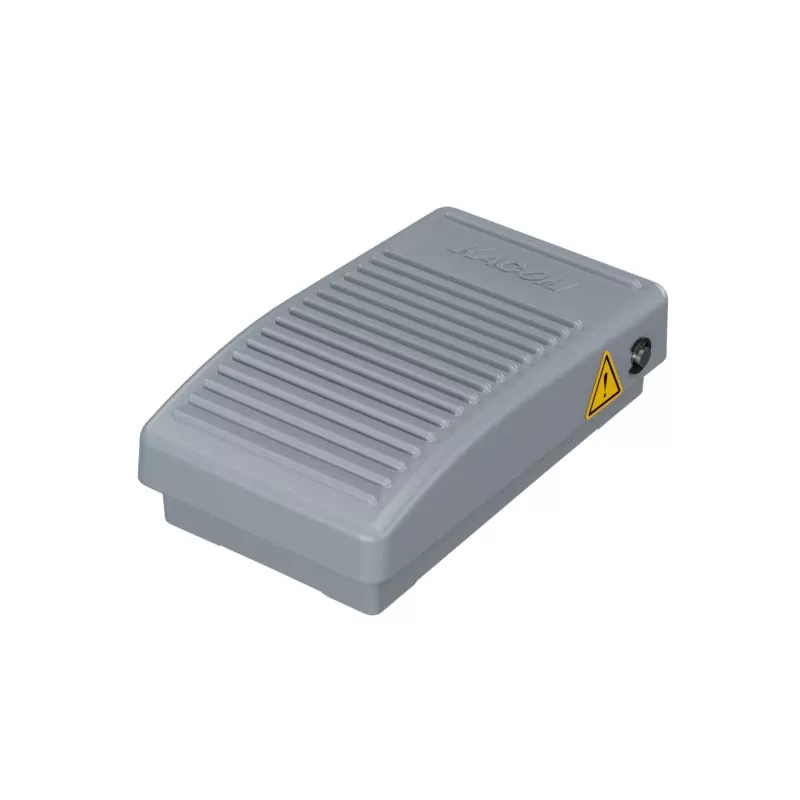

HRF-MD4 Series aluminum alloy foot switch features a die-cast
housing with a protective plastic coating. This durable construction
ensures reliable resistance to harsh environmental conditions, wear,
and aging. The cable outlet is fitted with a spring-loaded strain relief
connector, providing high tensile strength and superior protection.
  | |
 Pedal Color | C: Grey Y: Yellow R: Red A: Orange |
 Function | No mark: Standard Function F: Waterproof IPX7 R: Self-locking Alternating 3: 3-Position |
 Connector | No mark: Standard (Without ) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: 20AWG * 2m 3: 20AWG * 3m 5: 20AWG * 5m |
 Contact Mode | No mark: 1C(1a+1b) 2: 2a 2C: 2a+2b |

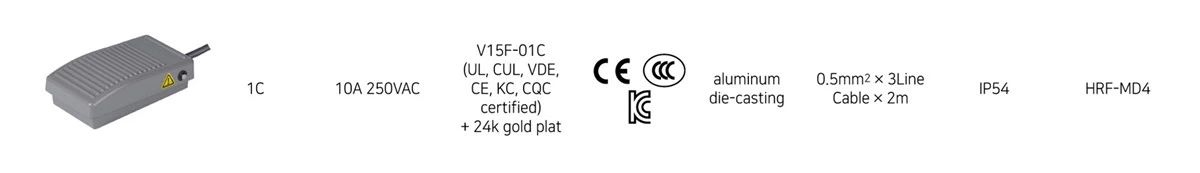

| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-MD4 |
| 1C | 8A 250VAC | V15F-01C (UL,CUL,VDE, CE,KC,CQC certified) |
| Aluminu mdie-casting | RVV 20AWG ×3Line Cable×2m | IP54 |
*Forothercustomizedmodels,pleasecontactwith usdirectly
| HRF-MD4 |
 |
