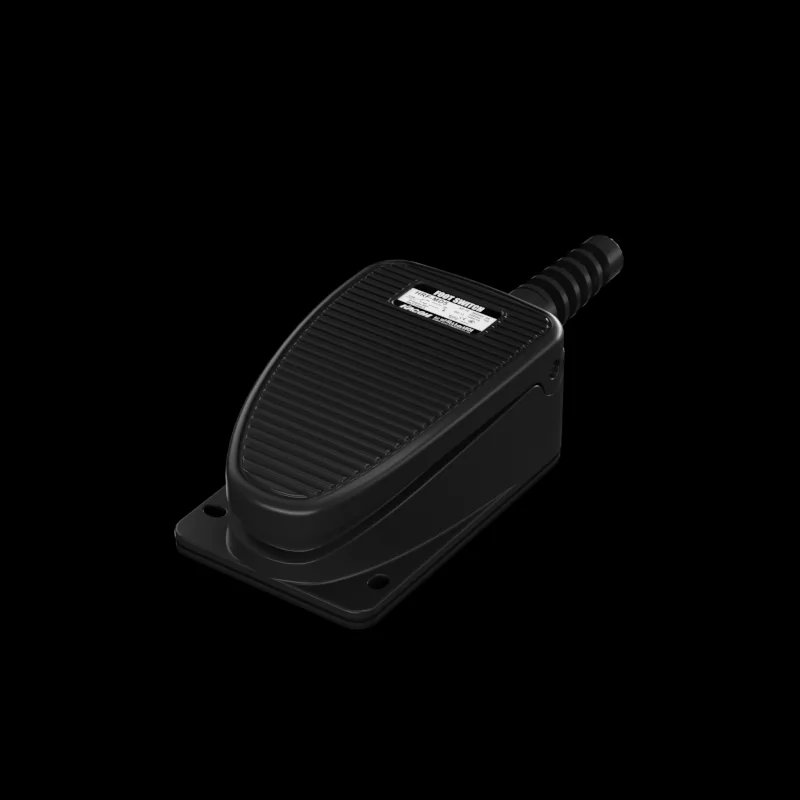

HRF-MD5 Series aluminum alloy foot switch is a versatile, all-range
advanced control device. Featuring a plastic-coated surface in
standard black, it offers exceptional resistance to friction, thermal
extremes (high and low temperatures), and chemical corrosion.
This robust design ensures high safety and reliable protection performance.
  | |
 Pedal Number | No mark: 1 Pedal 2: 2 Pedals 3: 3 Pedals |
 Pedal Color | No mark: Black Y: Yellow R: Red A: Orange |
| No mark: Standard (Without ) A: 6.3mm Audio connector D: Db9 serial port U: USB connection |
 Built-in Switch | No mark: Z Type single switch 2C: Z Type double switches |
 Cable | No mark: 18AWG * 2m 3: 18AWG * 3m 5: 18AWG * 5m |
 Fixed Mounting Plate | No mark: Short type L: Long type |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-MD5 |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | RVV 18AWG ×3Line Cable×2m | IPX7 |
*Forothercustomizedmodels,pleasecontactwith usdirectly

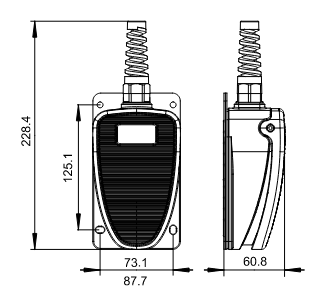

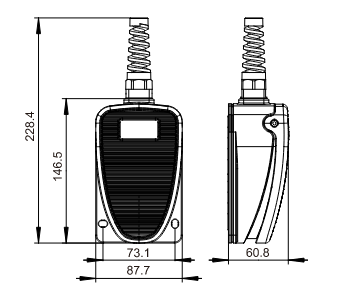

| HRF-MD5(Short Type) | HRF-MD5 (Long Type) |
 |  |
Connector
