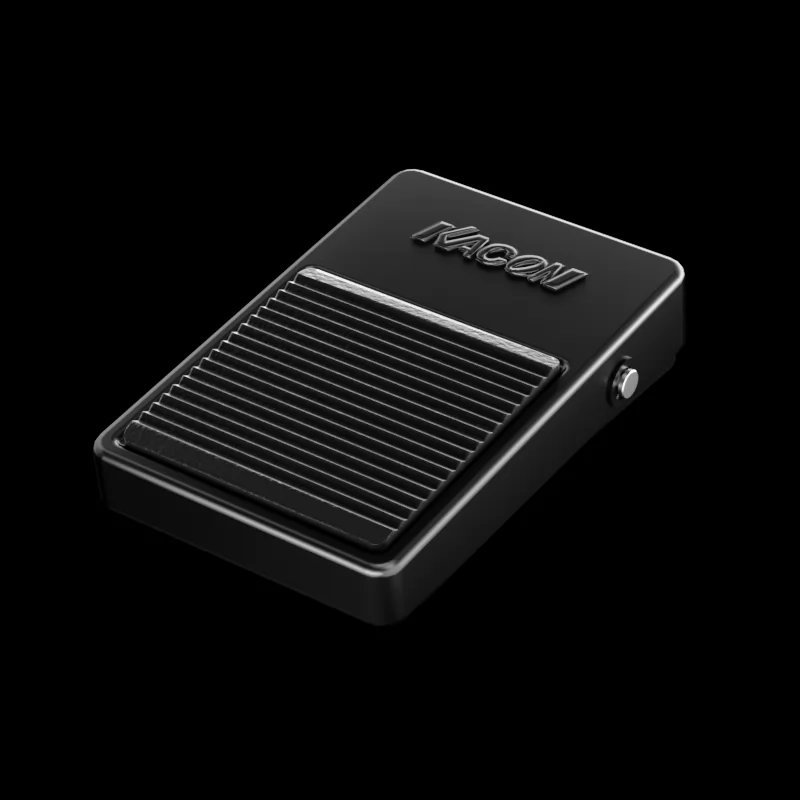

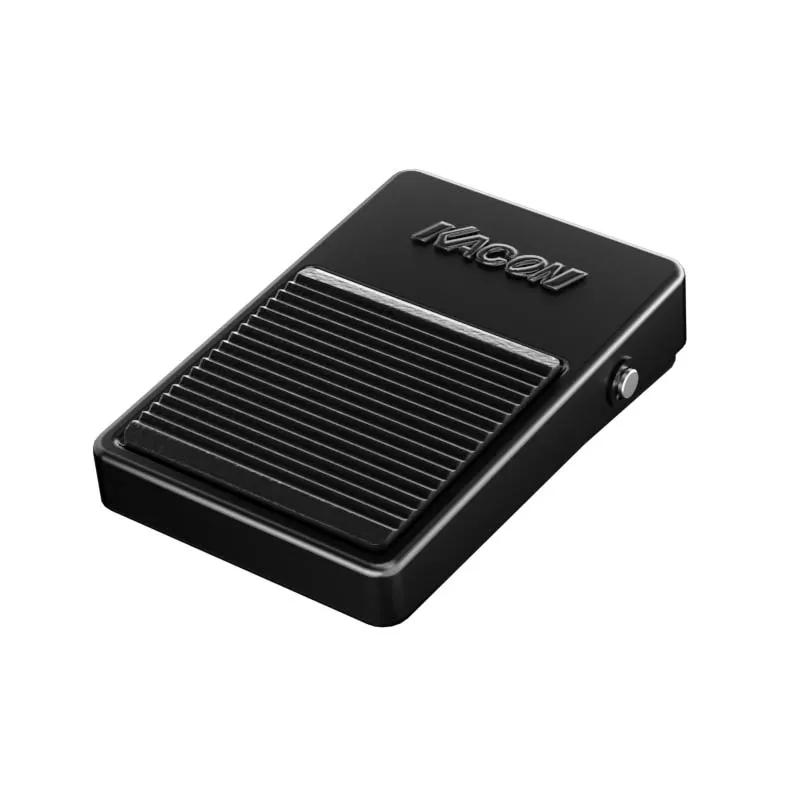

HRF-MX1 Series foot switch features a robust frame crafted from
stretch-formed carbon steel plates, ensuring high strength and a long
service life. The unit delivers superior protective performance and a sleek
appearance. A durable plastic coating provides excellent resistance to impact,
abrasion, and high temperatures (up to 180°C).
  | |
 Steel Plate Color | No mark: Black N: Chromeplate S: Stainless steel |
 Rubber Pad Color | No mark: Black Y: Yellow R: Red A: Orange G: Green B: Blue W: White C: Grey |
 Function | No mark: Standard Function F: Waterproof IPX8 |
 Connector | No mark: Standard (Without ) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: 20AWG * 2m 3: 20AWG * 3m 5: 20AWG * 5m |
 Pedal Number | No mark: 1 Pedal 2P: 2 Pedals 3P: 3 Pedal 4P: 4 Pedals 5P: 5 Pedals 6P: 6 Pedals |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-MX1 |  | 1C | 8A 250VAC | V15F-01C (UL,CUL,VDE, CE,KC,CQC certified) |  | Rolled steel sheets | RVV 20AWG ×3Line Cable×2m | IP54 |
*Forothercustomizedmodels,pleasecontactwith usdirectly
| HRF-MX1 |
 |
