KAF-HD Series heavy-duty aluminum alloy foot switch is a versatile,
wide-range control solution. Finished in a high-visibility warning yellow
plastic coating, it provides superior resistance to friction, thermal fluctuations,
and chemical corrosion. This rugged design ensures high safety standards
and reliable protection performance.
  | |
 Pedal Number | No mark: 1 Pedal 2: 2 Pedals 3: 3 Pedals |
 Contact Mode | 01: 1a + 1b 02: 2a + 2b |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| KAF-HD101 |  | 1C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| KAF-HD201 |  | 2C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
* For other customized models, please contact the factory directly

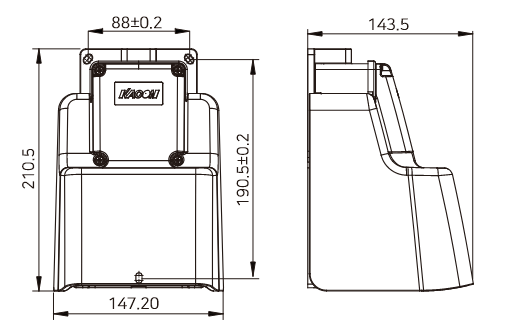

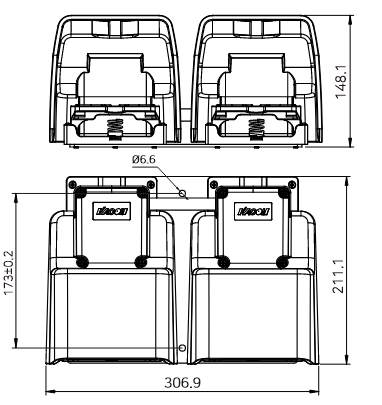

| KAF-HD101 | KAF-HD201 |
 |  |
