KXL Series Limit Switch
KXL Series Limit Switch
Trusted by Engineers in Automation for Over 25 Years
KACON’s KXL Series Snap Action Limit Switch has been field-proven in thousands of factory automation projects worldwide. With its precise switching mechanism, IP67 protection, and versatile actuator options, this series is engineered for demanding environments where reliability matters most.
Whether you are designing a robotic arm, configuring a conveyor system, or upgrading a machine tool, the KXL Series gives you the precision and durability required by industrial standards.
Snap-action contacts: Fast, reliable signal switching under varying forces
Rugged construction: Metal or reinforced plastic housing, IP67 sealed
Compact footprint: Ideal for limited-space control panels
Flexible configurations: Plunger, roller lever, or adjustable lever options
Extended lifespan: Rated for over 10 million mechanical operations
Certifications: CE, UL, RoHS compliant – meets global compliance requirements
Looking for a snap action limit switch you can rely on?
As a manufacturer with 25+ years of industrial control experience, KACON is ready to support your project from prototype to production.
The KACON KXL series is a versatile basic limit switch for position detection on machine tools, packaging and printing machinery, conveyors and general factory automation. All models share one aluminium die-cast body and one high-capacity built-in switch (KXL-104); only the actuator head changes, so a single spare covers many machines. The sealed construction is rated IP67, and SUS304 stainless steel springs are fitted for durability.

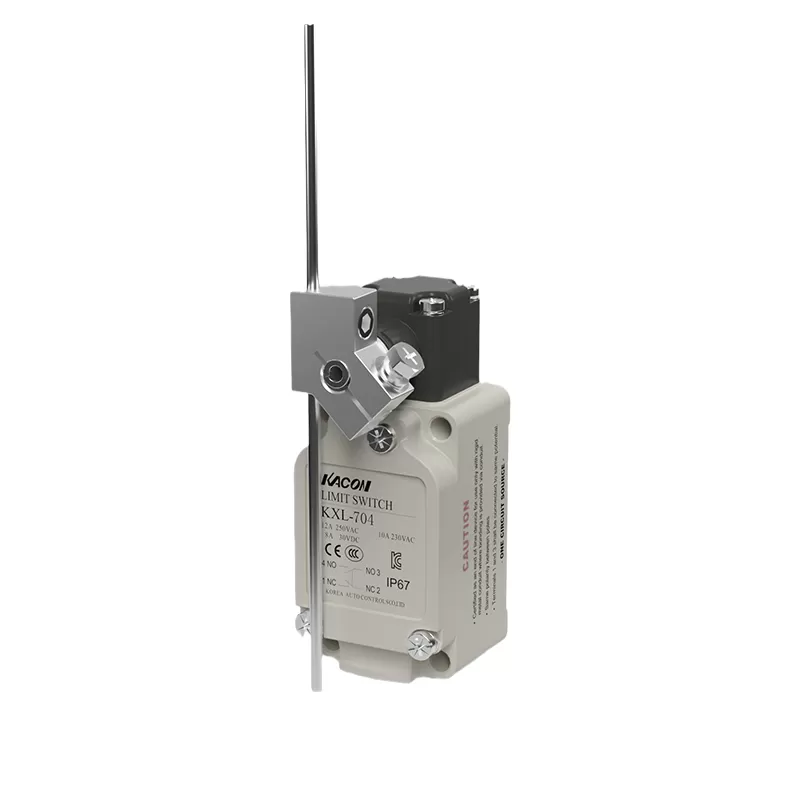

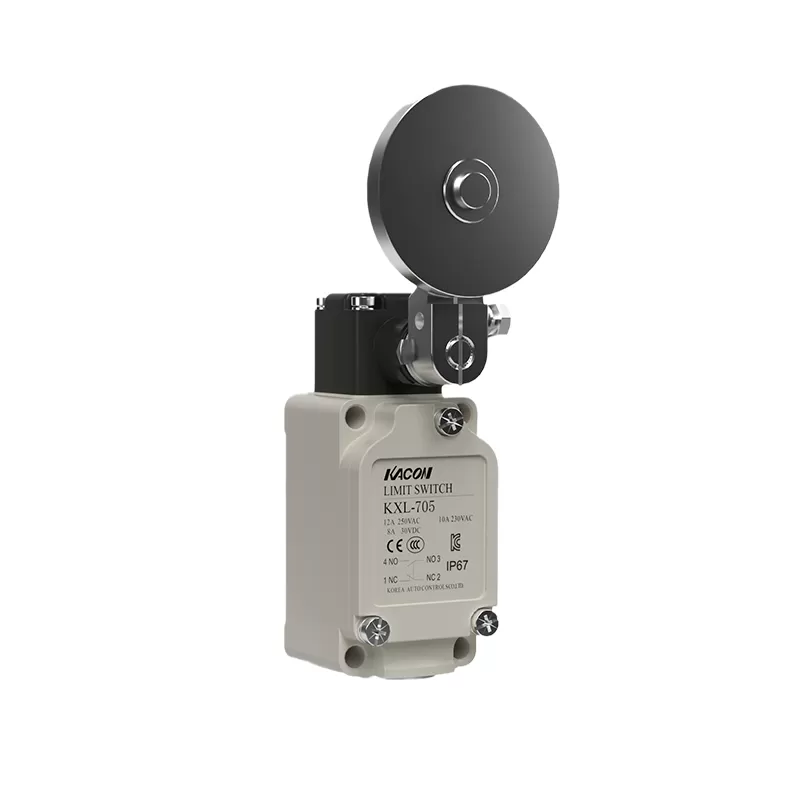

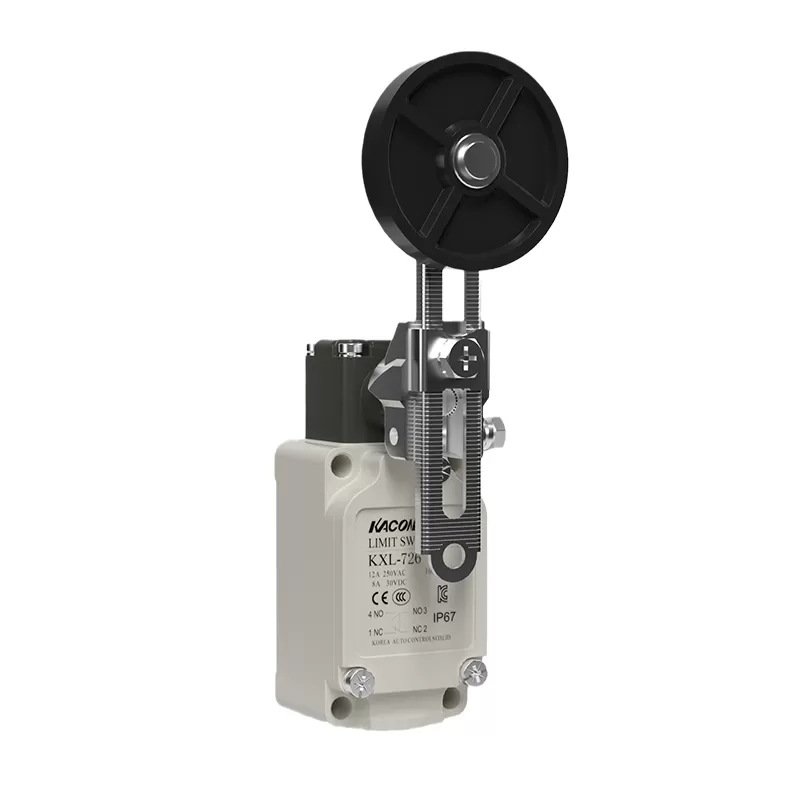

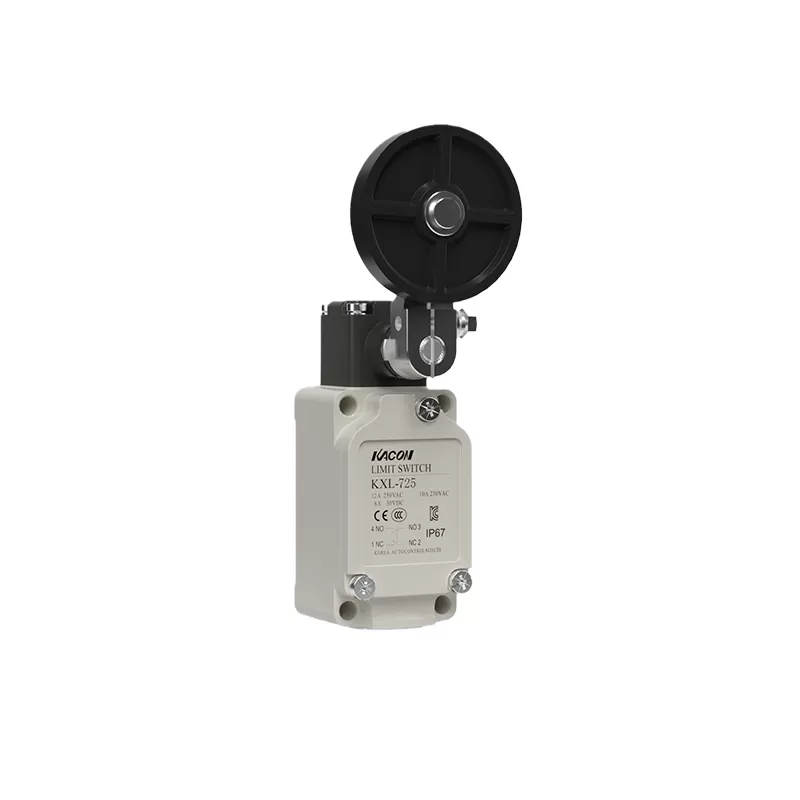

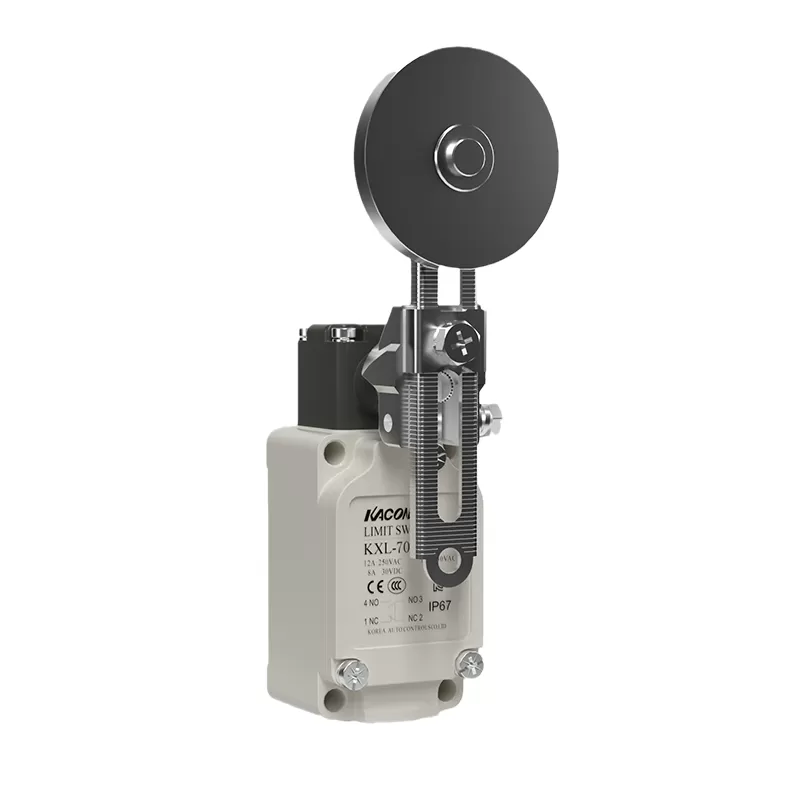

Plungers: KXL-301 push plunger, KXL-302 roller plunger, KXL-303 ball plunger. Roller levers: KXL-702 roller lever, KXL-703 adjustable roller lever, KXL-713 adjustable roller short lever, KXL-705 and KXL-725 Ø50 roller levers (aluminium / rubber), KXL-706 and KXL-726 Ø50 adjustable roller levers. Yoke roller levers: KXL-717, KXL-727, KXL-737, KXL-747. Rod and spring types: KXL-704 adjustable rod lever, KXL-901 spring rod, KXL-902 spring wire, KXL-923 metal spring rod.
Contact form 1NO + 1NC with silver alloy contacts; rated 12A at 250VAC (resistive load); contact resistance max. 15mΩ; mechanical life min. 10,000,000 operations and electrical life min. 1,000,000; operating speed 1mm to 1m/s; ambient temperature −10 to +80°C; protection IP67. Certified CE, CCC, cURus and KC.
Built-in indicator lamps make status checks easy: LED lamp for 12–24VDC/AC (suffix D) or neon lamp for 100–240VAC (suffix A). Stainless steel / copper execution is available with suffix S.
Need help matching a head type to your machine? Contact our team with your current model or application.
