Kacon KXL-702 cross roller lever type limit switch, high performance and high quality, forced segmented built-in switch, double-circuit double-break type 1A+1B contact, pendulum locking screw, with firm and reliable fixed function, the cover is processed at an acute angle to prevent the handle from slipping and idling, and the waterproof rubber gasket is installed, high sealing. The mounting Angle of the swing rod, the four fixed head directions, three action characteristics can be changed can be changed. The ball bearings can be mounted on the inside. The handle is made of corrosion-resistant aluminum alloy material, which can guarantee reliable action during long-term use.
| Technical Specifications | |
| Contact Form | 1N/O +1N/C |
| Contact Material | Ag alloy |
| Rated Current | 12A 250VAC · Resistance load |
| Insulation Resistance | Min.100MΩ500VDC Insulation resistance |
| Contact Resistance | Max.15mΩ |
| Surge Current (No Contacts) | Max 20A |
| Internal Voltage Between Terminals | 1,000VAC 50/60Hz 1 Minute |
| Internal Voltage (Terminal to Non-Charging Parts) | 2,200VAC·50/60Hz 1 Minute |
| Mechanical Life | Min. 10,000,000 |
| Electrical Life | Min.1.000,000 |
| Vibration Resistance | 10~55Hz Dual wave length 1.5mm |
| Degree of Protection | IP67 |
| Ambient Temperature | -10~+80°C·(with no icing) |
| Ambient Humidity | Max.95%RH |
Kacon KXL-702 Cross Roller Lever type limit switch with IP67 protection rating, have CE, CCC, KC certifications. Completely sealed structure, the surrounding leakage of oil, gas, water and other completely isolated, to ensure the built-in switch contact reliability and long life. Built-in switch base using phenolic resin material, arc resistance, high and low temperature resistance, good insulation and flame retardant properties, suitable for high strength work.

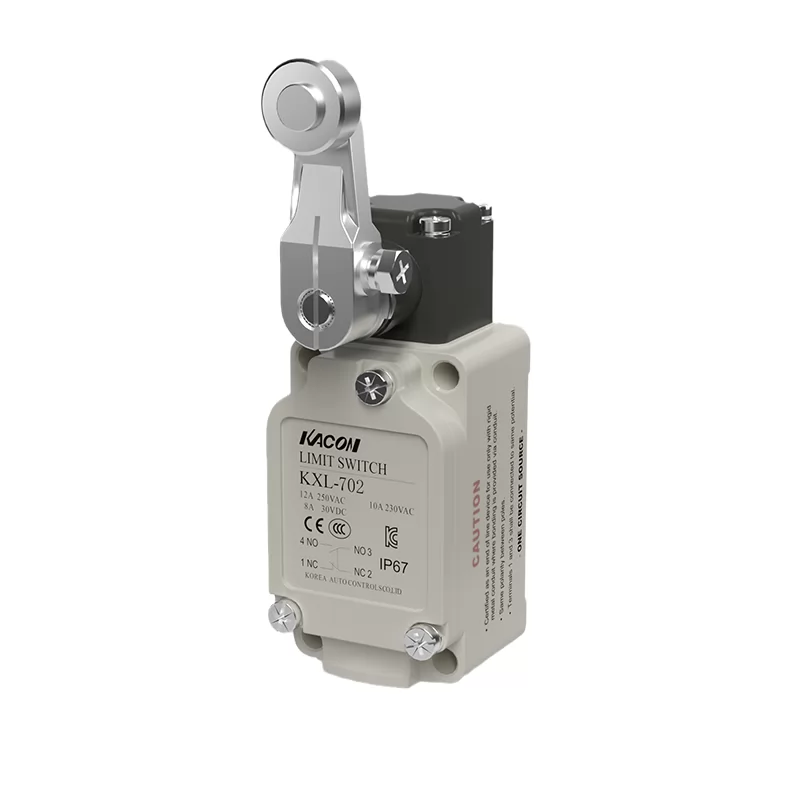

Kacon KXL-702 Limit Switch
Features
• Operation mode: ON-OFF
• Contact Type: Normally open, normally closed
• CE, CQC, KC certified
• Mechanical Lifespan: min. 15,000,000 times; Electrical Lifespan: min. 1,000,000 times(3A 250VAC resistive load), min. 150,000 times(12A 250VAC resistive load)
• Rated voltage: AC 125V 250V 500V, DC 30V 125V 250V
• Contact Material: Silver alloy
• International Protection Rating: IP67
Q&A
Q: Where can this product be applied?
A: Widely used in various industries, such as factory machinery, subway, equipment, shipping machinery, iron making, cement plants, etc.
Q: Is there an indicator light?
A: Yes, and the whole series with indicator type, the indicator light transmission is made of high transparency, high diffusion material, so that the action state is intuitive and easy to confirm, and the terminal protective cover integrated injection molding, has excellent protection performance.
Q: What’s the contact form?
A: 1N/O + 1N/C.
