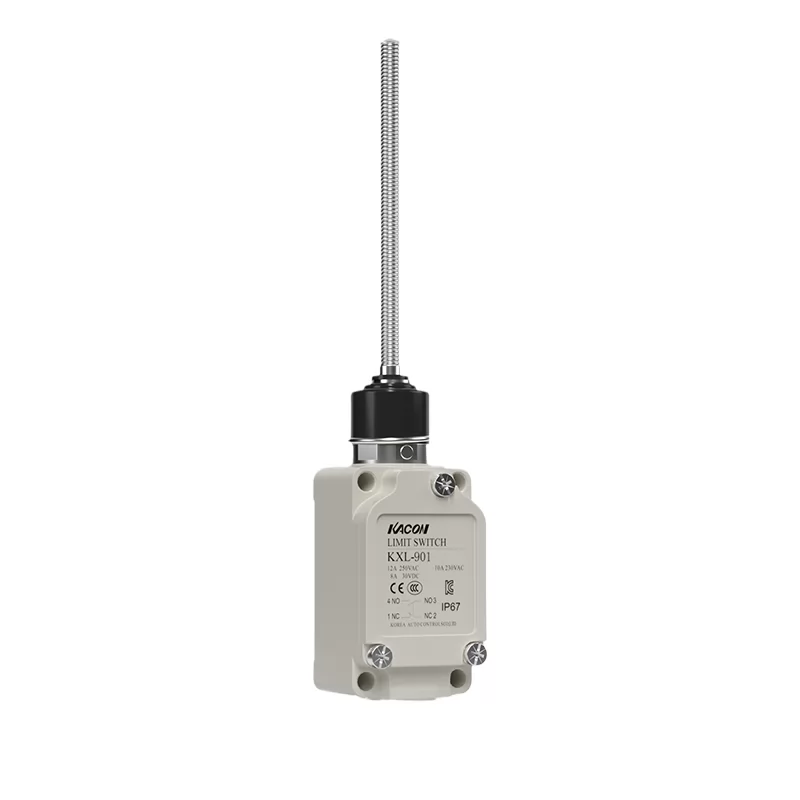

The KACON KXL-901 is a spring rod limit switch in the KXL basic series. The long flexible spring rod can be deflected from any direction, which makes the KXL-901 the right actuator where the moving part's approach is not precisely aligned — light conveyors, packaging machines, door and flap position detection.
The switch body is shared with the whole KXL range: an aluminium die-cast housing sealed to IP67, a high-capacity built-in switch with silver alloy contacts rated 12A at 250VAC, SUS304 stainless steel springs, and a mechanical life of at least 10,000,000 operations.
| Contact Form | 1N/O + 1N/C |
| Contact Material | Ag alloy |
| Rated Current | 12A 250VAC · Resistance load |
| Insulation Resistance | Min. 100MΩ 500VDC Insulation resistance |
| Contact Resistance | Max. 15mΩ |
| Surge Current | NC Contacts Max 30A / NO Contacts Max 20A |
| Internal Voltage Between Terminals | 1,000VAC 50/60Hz 1 Minute |
| Internal Voltage (Terminal to Non-Charging Parts) | 2,200VAC 50/60Hz 1 Minute |
| Mechanical Life | Min. 10,000,000 |
| Electrical Life | Min. 1,000,000 |
| Vibration Resistance | 10 ~ 55Hz Dual wave length 1.5mm |
| Degree of Protection | IP67 |
| Ambient Temperature | -10 ~ +80°C (with no icing) |
| Ambient Humidity | Max. 95%RH |
The KXL series carries CE, CCC, cURus and KC certification. Options include LED (suffix D, 12–24VDC/AC) or neon (suffix A, 100–240VAC) indicator lamps and stainless steel / copper execution (suffix S). Contact our team for selection help, datasheets and quotations.
| Technical Specifications | |
| Contact Form | 1N/O +1N/C |
| Contact Material | Ag alloy |
| Rated Current | 12A 250VAC · Resistance load |
| Insulation Resistance | Min.100MΩ500VDC Insulation resistance |
| Contact Resistance | Max.15mΩ |
| Surge Current (No Contacts) | Max 20A |
| Internal Voltage Between Terminals | 1,000VAC 50/60Hz 1 Minute |
| Internal Voltage (Terminal to Non-Charging Parts) | 2,200VAC·50/60Hz 1 Minute |
| Mechanical Life | Min. 10,000,000 |
| Electrical Life | Min.1.000,000 |
| Vibration Resistance | 10~55Hz Dual wave length 1.5mm |
| Degree of Protection | IP67 |
| Ambient Temperature | -10~+80°C·(with no icing) |
| Ambient Humidity | Max.95%RH |
Kacon KXL-901 Spring Rod limit switch with IP67 protection rating, have CE, CCC, KC certifications. Completely sealed structure, the surrounding leakage of oil, gas, water and other completely isolated, to ensure the built-in switch contact reliability and long life. Built-in switch base using phenolic resin material, arc resistance, high and low temperature resistance, good insulation and flame retardant properties, suitable for high strength work.
Kacon KXL-901 Limit Switch
Features
• Operation mode: ON-OFF
• Contact Type: Normally open, normally closed
• CE, CQC, KC certified
• Mechanical Lifespan: min. 15,000,000 times; Electrical Lifespan: min. 1,000,000 times(3A 250VAC resistive load), min. 150,000 times(12A 250VAC resistive load)
• Rated voltage: AC 125V 250V 500V, DC 30V 125V 250V
• Contact Material: Silver alloy
• International Protection Rating: IP67
Q&A
Q: Please introduce the forced segmentation contact function
A: Due to the melting and sticking phenomenon of the contact through short-circuit current and overcurrent, the contact is broken under the force of the forced segmentation mechanism to prevent accidents.
Q: Where can this product be applied?
A: Widely used in various industries, such as factory machinery, subway, equipment, shipping machinery, iron making, cement plants, etc.
Q: What’s the contact form?
A: 1N/O + 1N/C.
Q: What’s the dimension of Pendulum lock screw?
A: M4×12, Φ6×6mm Allen key, (Wrench) Bolt -3mm.
