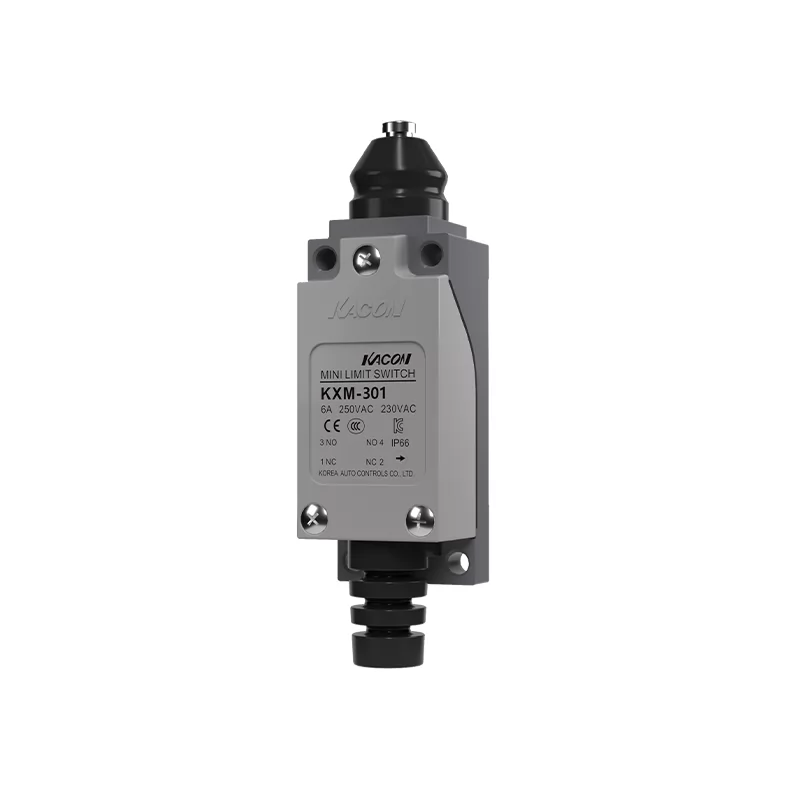

The KXM-301 Push Plunger Limit Switch is engineered for precise position detection and motion control in industrial automation systems. Designed with a durable metal housing and high-performance snap-action contacts, it delivers fast response, excellent repeatability, and long service life even in demanding industrial environments.
Push plunger type limit switch, with forced segmentation contact function (NC contact only), the hinge is machined at an acute angle to prevent the handle from slipping and idling, and the OT angle of the extended pendulum is min. 90°. Cam wear resistance, high self-lubricating. Built in switch with embossed surface, conductivity up to 40 IACS. With IP66 protection rating.
The KXM-301 Push Plunger Limit Switch is engineered for precise position detection and motion control in industrial automation systems. Designed with a durable metal housing and high-performance snap-action contacts, it delivers fast response, excellent repeatability, and long service life even in demanding industrial environments.
As a professional limit switch manufacturer and supplier, KACON provides dependable industrial switches that meet international quality standards. The KXM-301 is suitable for continuous operation in machinery requiring accurate travel detection, safety interlocking, and automatic control. Its compact design allows easy installation while maintaining stable electrical performance under vibration, dust, and frequent mechanical operation.
Whether you are an equipment manufacturer, automation integrator, or industrial distributor, the KXM-301 offers a cost-effective and reliable solution for OEM and replacement applications worldwide.
Kacon KXM-301 with high mechanical strength, corrosion resistance.
● CE/CCC/KC
● With force disconnection function.
● Impact resistance: Durability Max. 98m/s²(about 10G) Malfunction Max.294m/s²(about 30G).
● Returning spring is made of 304 stainless steel , after heat aging treatment, elastic fatigue recovery is good, special grease.
● Accessories: Rubber seal ring, flat gasket, cable lock, nuts, screws, bolts are provided.
● Built in double reed
● Gold plated contact can be customized
● With ground screws
As an experienced limit switch supplier, KACON supports customized manufacturing according to customer requirements.
● Operating environment of minus 40℃.
● Gold embossed surface contact can be customized.
● With indicator lamp, intuitive(LED and neon lights):12~24 AC/DC; 100~240 AC/DC.
● Equipped with jumper.
● The length and the angle of the operating lever can be customized
● Housing Colors: dark blue, grey（universal type）
Our engineering team works closely with customers to develop reliable switching solutions for various industrial automation projects.
● Base: Zinc alloy
● Contact: Silver alloy, with high conductivity：40 IACS%
● Contact base: PA66
● Rotating shaft: Stainless steel metallurgical powder
● Lever: Copper nickel plated
● Panel cover: PA66
● Wiring protective sleeve and rubber seal: NBR
● Leaf spring: Beryllium bronze
● Moving reed: Phosphor bronze
● Brass nut: Injected with the bakelite casing
● Factory machines, subway, sewer, shipping machinery, cement factory, etc.
With years of experience in industrial control components, KACON has become a trusted limit switch manufacturer serving customers worldwide. Every KXM Series limit switch undergoes strict quality inspection to ensure reliable operation and long-term durability.
● Professional OEM & ODM manufacturing
● Stable product quality
● Fast production and delivery
● Technical support from experienced engineers
● Competitive factory pricing
● Global export experience
Whether you require standard products or customized industrial control solutions, KACON can provide dependable support for your business.
The KXM-301 is designed for mechanical position detection, travel limitation, machine safety, and automatic control in industrial equipment.
Yes. Its rugged metal housing and high-quality sealing provide reliable performance in factories exposed to vibration, dust, and oil.
Yes. KACON offers OEM and ODM services, including actuator styles, wiring methods, branding, and packaging.
Yes. We support distributors, machine manufacturers, system integrators, and industrial equipment suppliers with bulk purchasing and long-term cooperation.
KACON manufactures high-quality industrial limit switches for customers around the world. Whether you need standard KXM Series products or customized OEM solutions, our experienced team is ready to help.
Contact us today for product specifications, technical consultation, factory pricing, and customized solutions.
