In highly modern hospital operating rooms and radiology suites, medical imaging equipment—such as C-arm X-ray machines, Digital Subtraction Angiography (DSA) systems, medical ultrasound, and CT/MRI positioning setups—is rapidly evolving toward greater precision and intelligence. Yet, behind these large and complex systems lies an often overlooked but indispensable human-machine interface component: the medical foot switch.
With touchscreens and handheld remotes so ubiquitous today, many might ask: why do medical imaging devices still rely so heavily on foot switches? What crucial role do they actually play in diagnostics and minimally invasive procedures?

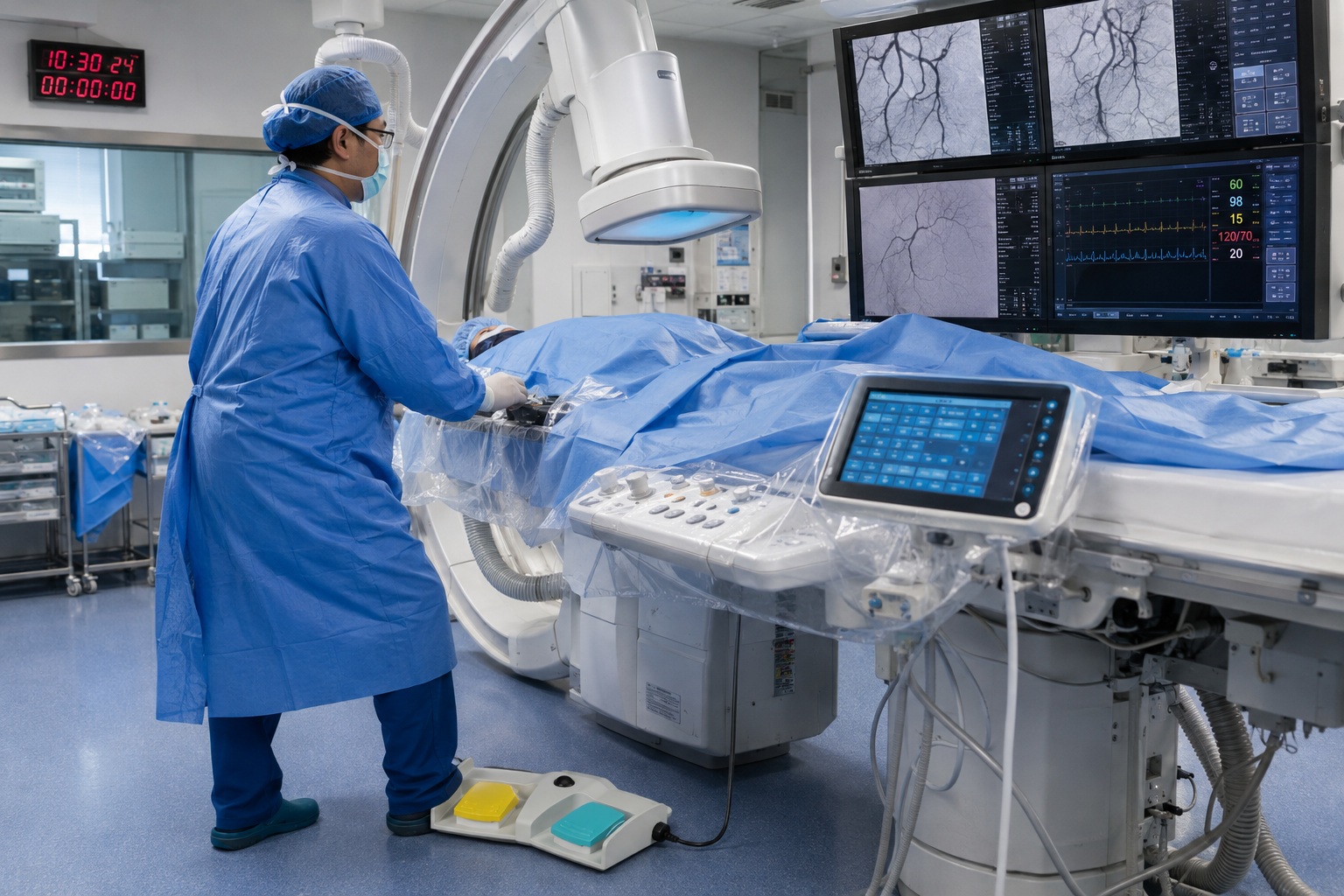

During interventional procedures (e.g., cardiac or neuro-interventional) or orthopedic reductions, physicians must hold catheters, puncture needles, or surgical instruments with both hands. At these moments, any extra hand movement can compromise the strict sterile field or cause a loss of focus. By operating foot switches to control X-ray exposure, image capture, or mode switching, physicians can execute critical commands without altering their hand positions, achieving true "hand-eye coordination." You can refer to the
Medical imaging equipment—especially dynamic X-ray and DSA systems—demands extremely high time sensitivity. Foot switches provide millisecond-level signal triggering and interruption. When the physician presses the pedal, exposure starts instantly; when the foot is lifted, radiation stops immediately. This "instant-on, instant-off" precise control minimizes unnecessary radiation exposure for both patients and healthcare personnel.

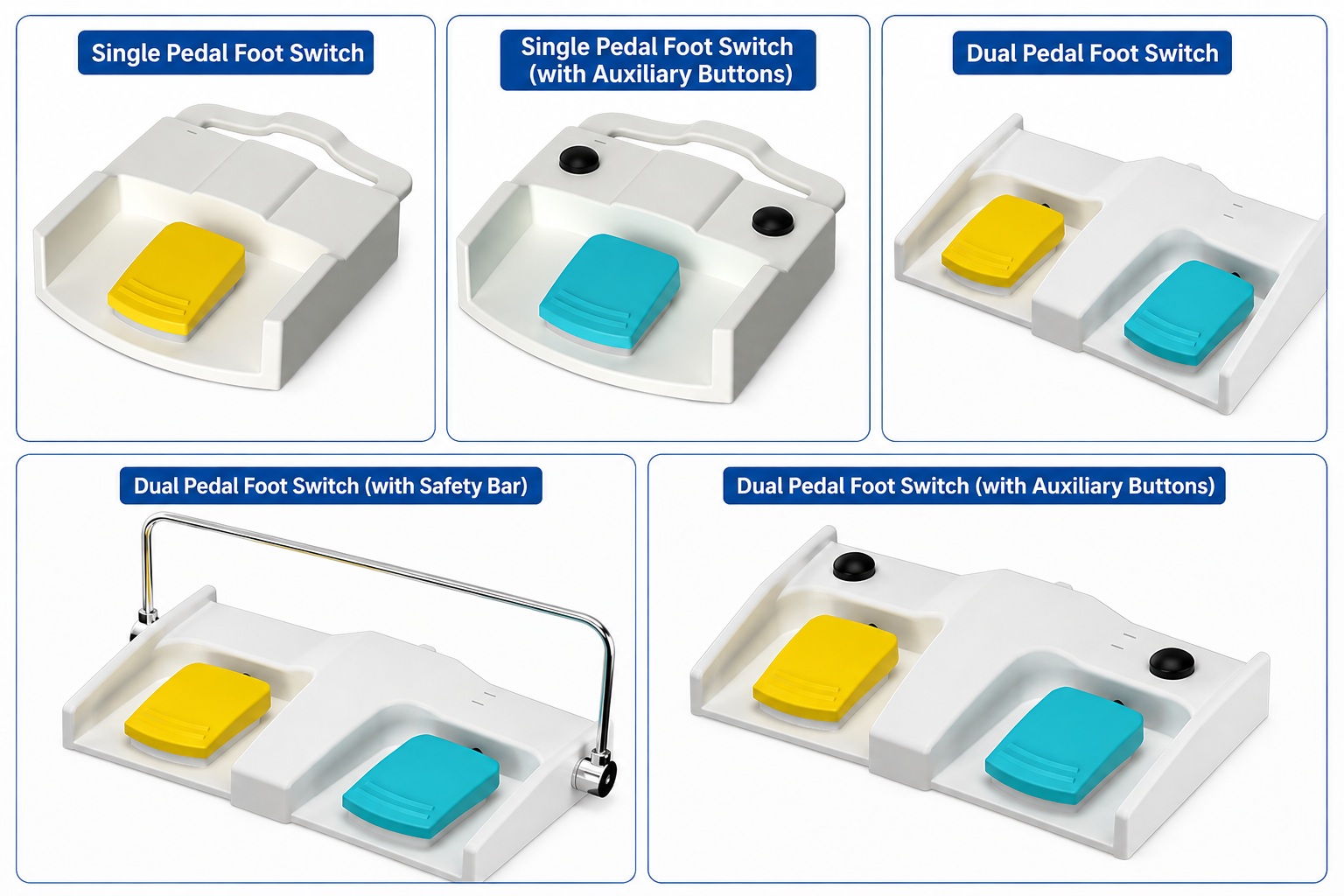

Modern medical foot switches are no longer simple "on/off" buttons. By integrating multiple pedals, joysticks, and customizable keys, physicians can use foot controls to:
Switch between continuous fluoroscopy and single-frame snapshot
Zoom in, zoom out, or adjust image contrast
Adjust the height and angle of the patient table
https://www.kacon.net/medical-foot-switch/hd62yb-medical-foot-switch.html
To illustrate the indispensability of medical foot switches in imaging equipment, here is a multi-dimensional comparison between foot switches and traditional handheld or panel controllers:Medical Foot Switches vs. Traditional Handheld Controllers

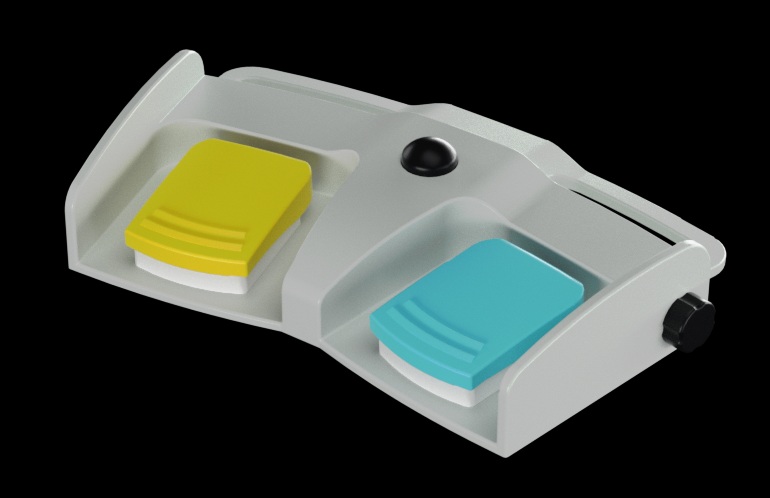

During a complex spinal fracture internal fixation procedure, an orthopedic surgeon needed to perform real-time fluoroscopy multiple times using a C-arm X-ray system to confirm the angle and depth of screw insertions. The Challenge: The surgeon's hands were occupied maintaining the fracture reduction, making it impossible to operate the control panel directly. Having an assistant nurse operate a handheld switch introduced command delays (1–2 seconds), increasing unnecessary radiation exposure and reducing positioning accuracy. The Solution: The equipment was equipped with a waterproof dual-pedal medical foot switch. The left pedal was set for "low-dose continuous fluoroscopy," while the right pedal was set for "high-definition single-frame capture." The surgeon operated the pedals blindly by tactile feel, capturing real-time images without changing hand position. This reduced total exposure time by approximately 30% and significantly increased screw placement success rates.Real-World Case Studies
Case 1: Precision Exposure in C-Arm Orthopedic Surgery
In catheterization labs (Cath Labs), floors are often cluttered with power cables and signal lines from various imaging systems and monitors, creating significant trip hazards for medical staff.
The Challenge: Cables from traditional wired foot switches easily tripped personnel and were prone to damage when rolled over by heavy mobile equipment, leading to signal loss.
The Solution: Integrating medical wireless foot switches based on low-power encrypted wireless technology (e.g., 2.4 GHz or infrared transmission). These foot switches undergo strict Electromagnetic Compatibility (EMC) testing and comply with medical device safety guidelines from the
To meet the strict demands for reliability, ergonomics, and regulatory compliance in medical imaging equipment, modern medical foot switch solutions consist of four core technical modules:
Because operating rooms and imaging suites are frequently washed down with chemical disinfectants, and liquids such as blood or saline may spill during procedures, medical foot switches must feature robust protection. Premium solutions use integrated sealed enclosures with medical-grade silicone covers, allowing them to be submerged for disinfection while complying with durability tests under the
Accidentally stepping on a foot switch can lead to unintended radiation exposure or unexpected equipment movements. Therefore, foot switches for high-risk imaging equipment typically feature:
Mechanical Toe Guards: The foot must slide inside the guard frame to actuate the pedal.
Tactile Click Feedback: Distinct tactile pressure steps ensure the physician clearly feels when a command triggers.
Two-Stage Triggering: A light press activates pre-heating or focusing, while a deeper press triggers actual exposure.
As part of an imaging system, medical foot switches must be certified by accredited bodies such as
Protracted surgical procedures often cause foot and leg fatigue. Quality foot switches utilize low-profile incline angles, precisely calibrated actuation force (typically maintained between 10 N and 20 N), and high-traction rubber bases to ensure the unit stays firmly grounded on slippery operating room floors.
In addition, we offer a variety of wireless foot switches that provide even greater convenience.
As medical imaging technology advances toward greater intelligence and minimally invasive care, medical foot switches have evolved far beyond basic "on/off switches." They serve as a critical safety bridge connecting physician intent with high-precision medical machinery. By selecting foot switch solutions featuring high protection ratings, international medical certifications, and ergonomic engineering, medical device manufacturers can significantly enhance clinical safety, optimize user experience, and provide a firmer foundation for healthcare quality.Conclusion
