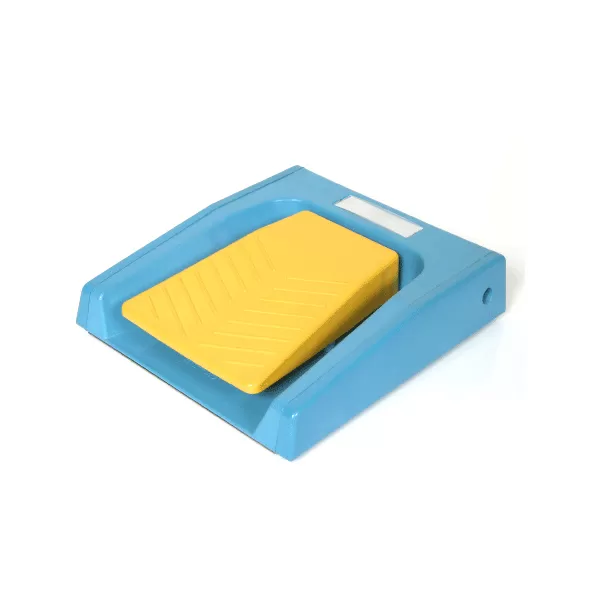

HRF-M5 series Medical foot switch features a flame-retardant,
reinforced engineering plastic housing, this product boasts superior
material selection, a novel and distinctive design, and high structural integrity.
It offers exceptional resistance to chemicals, aging, and impact.
The integrated embedded marking plate ensures clear, permanent identification
of usage and function codes, eliminating the risk of detachment or fading.
  | |
 Pedal Number | No mark: 1 Pedal 2: 2 Pedals 3: 3 Pedals |
 Body Color | No mark: Blue L: Milk white C: Grey |
 Pedal Color | Y: Yellow R: Red B: Blue W: White |
 Connection Block | No mark: Standard J: Transformation block |
 Connector | No mark: Standard (Without ) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: 20AWG * 2m 3: 20AWG * 3m 5: 20AWG * 5m |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-M5 |  | 1A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RVV 20AWG ×2Line Cable×2m | IPX8 |
| HRF-M52 |  | 2A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RVV 20AWG ×4Line Cable×2m | IPX8 |
| HRF-M53 |  | 3A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RVV 20AWG ×4Line Cable×2m | IPX8 |
| HRF-M5-L |  | 1A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RVV 20AWG ×2Line Cable×2m | IPX8 |
| HRF-M52-L |  | 2A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RVV 20AWG ×4Line Cable×2m | IPX8 |
| HRF-M53-L |  | 3A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RVV 20AWG ×4Line Cable×2m | IPX8 |
| HRF-M52-L-J |  | 2A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RVV 20AWG ×4Line Cable×2m | IPX8 |
| HRF-M53-L-J |  | 3A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RVV 20AWG ×4Line Cable×2m | IPX8 |
*Forothercustomizedmodels,pleasecontactwith usdirectly

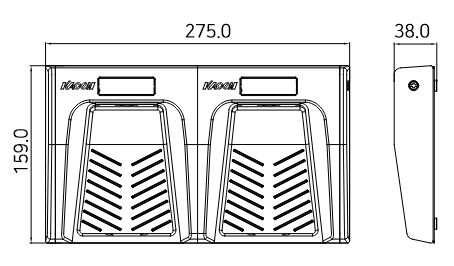

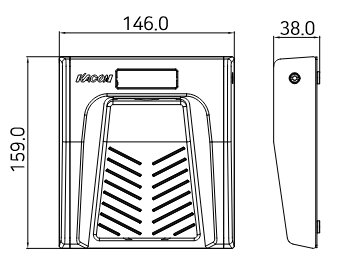

| HRF-M5 / HRF-M5-L | HRF-M52 / HRF-M52-L | HRF-M53 / HRF-M53-L |
 |  |  |

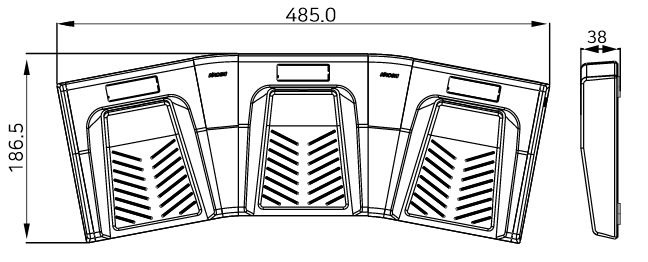

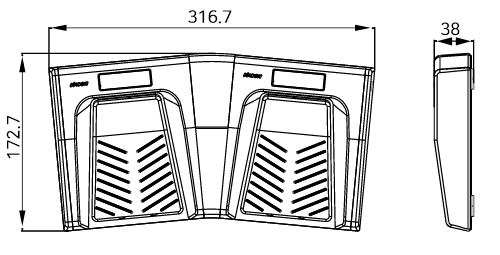

| HRF-M52-L-J | HRF-M53-L-J |
 |  |
