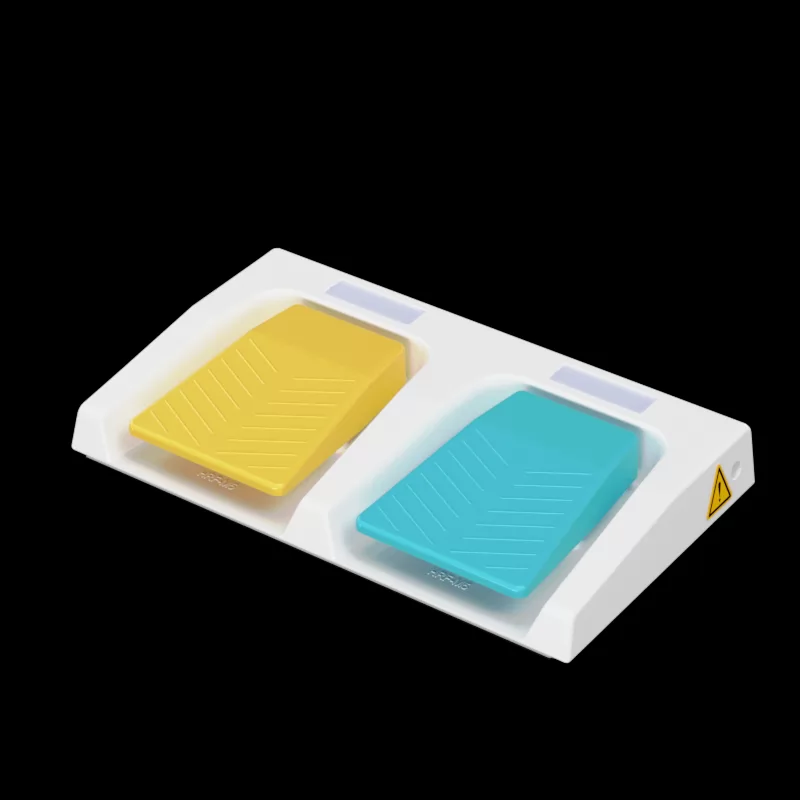

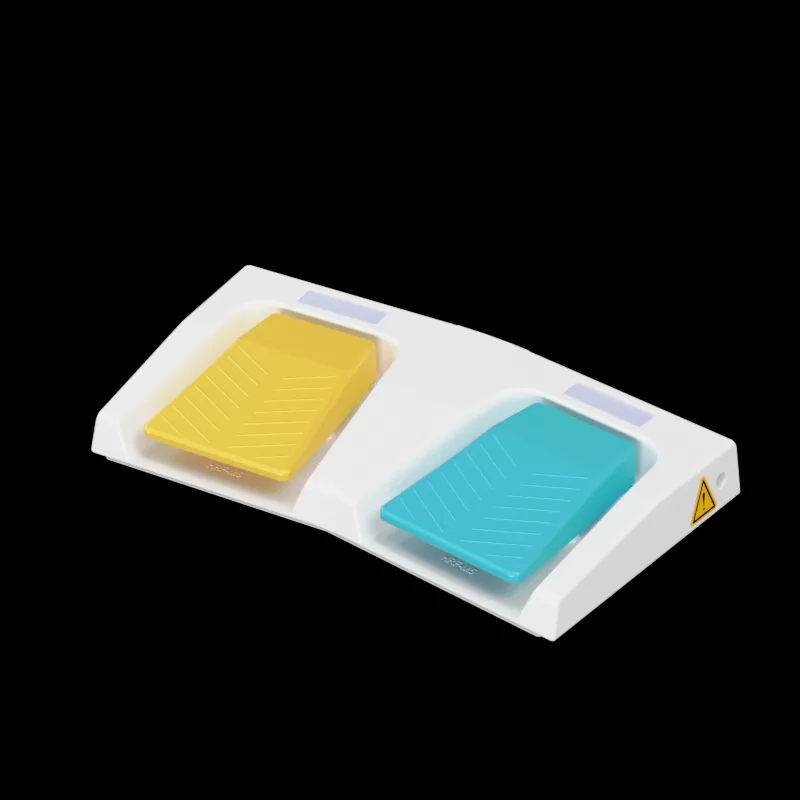

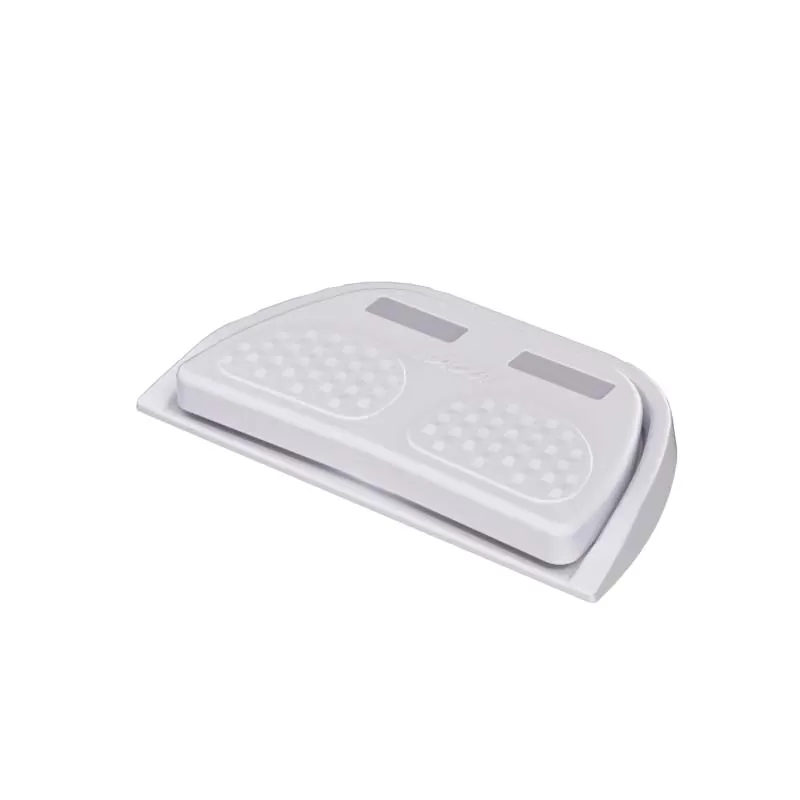

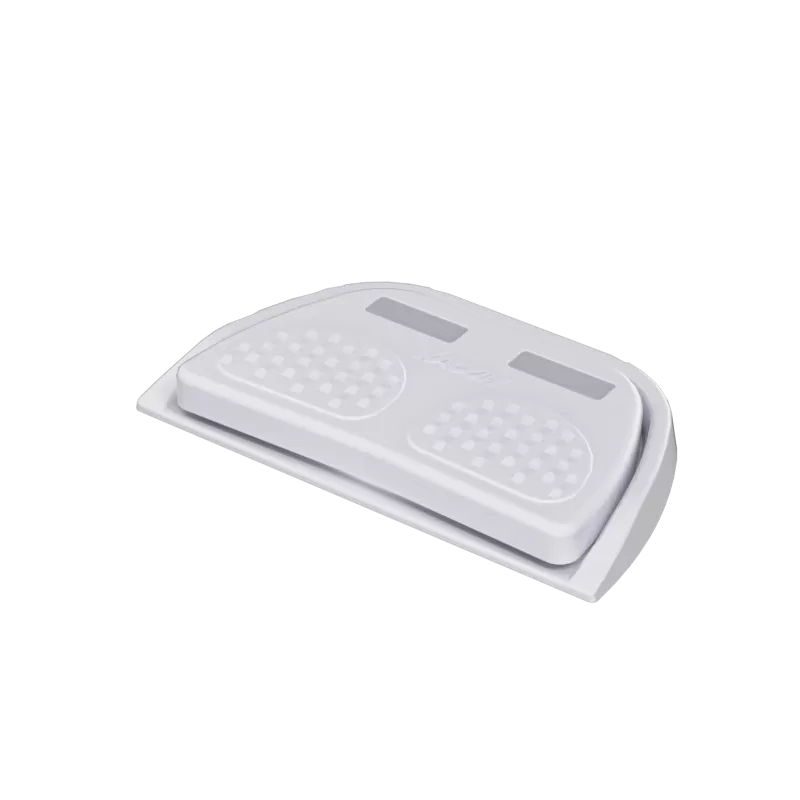

HRF-M6 Series medical double-pedal foot switch features a unique
swing-plate dual-pedal mechanism, specifically designed for motion
control systems requiring opposing actions—such as up/down,
forward/reverse, or extend/retract.
This innovative structure effectively prevents accidental activation, ensuring
operational safety. Housed in a flame-retardant, reinforced engineering plastic casing,
the unit delivers high structural strength along with excellent resistance to impact, chemicals, and aging.
  | |
 Connector | No mark: Standard (Without ) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: 20AWG * 2m 3: 20AWG * 3m 5: 20AWG * 5m |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-M6 |  | 2A | 8A 250VAC | V15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | RV 20AWG ×4Line Cable×2m | IPX8 |
*Forothercustomizedmodels,pleasecontactwith usdirectly

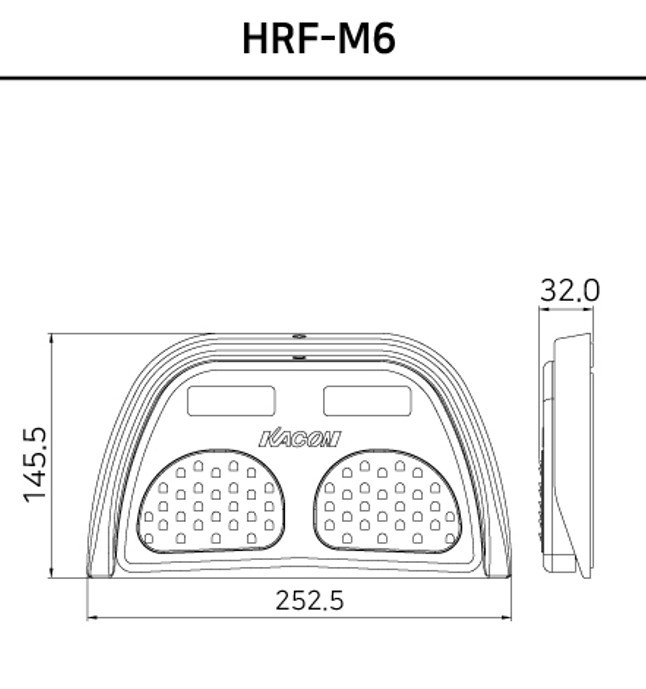

| HRF-M6 |
|
