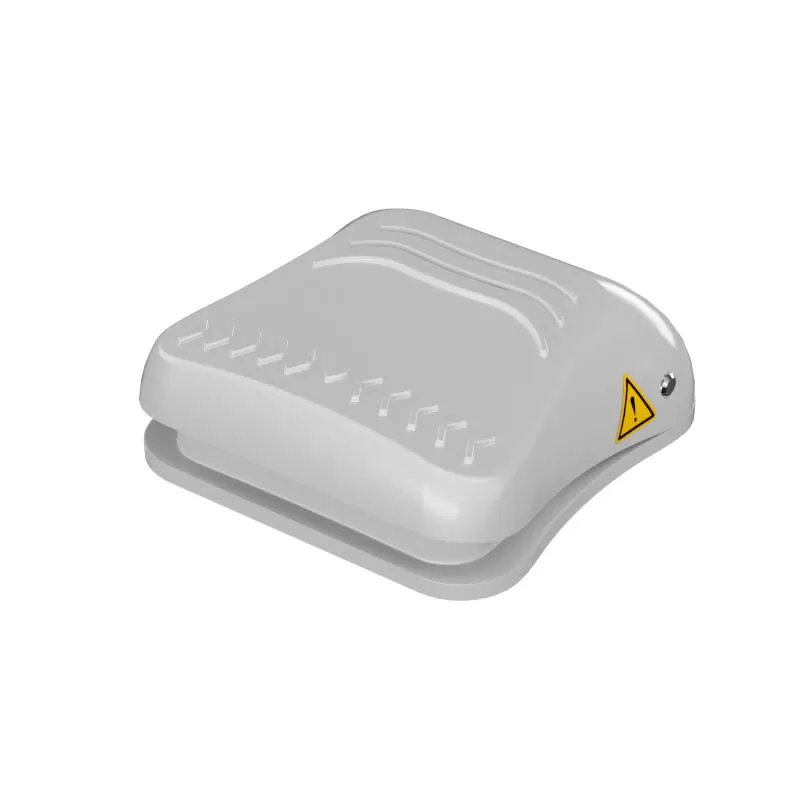

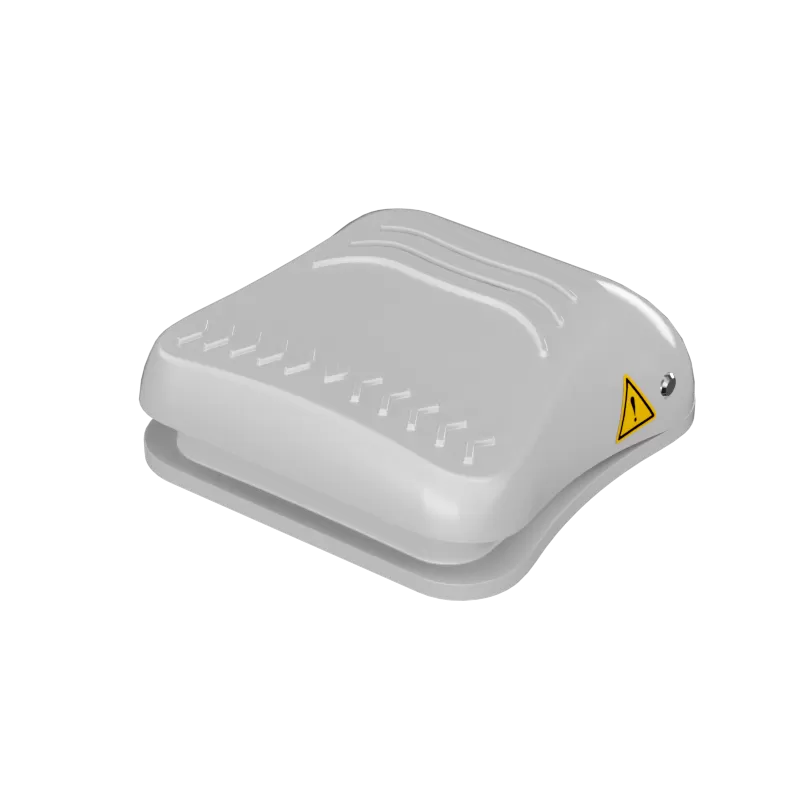

HRF-M7 Series medical foot switch features a compact, sleek design
and exceptional cost-effectiveness, making it ideal for controlling a wide
range of machinery and equipment.
Constructed from high-grade engineering plastic (PC), the housing delivers
superior mechanical strength and outstanding resistance to impact, wear, and
aging. This ensures excellent long-term mechanical stability even in demanding environments.
  | |
 Pedal Color | C: Grey T: Tiffany blue |
 Built-in Switch | No mark: V15F-01C (IP54) F: V05F-14 (IPX7) M: Snap switch (For signal) |
 Connector | No mark: Standard (Without ) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: 20AWG * 2m 3: 20AWG * 3m 5: 20AWG * 5m |
 Fixed Mounting Plate | No mark: Standard I: Stainless steel |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-M7CF |  | 1A | 5A 250VAC | V05F-14 (UL,CUL,VDE, CE,KC,CQC certified) |
| Plastic | RVV 20AWG ×2Line Cable×2m | IPX7 |
*Forothercustomizedmodels,pleasecontactwith usdirectly
| HRF-M7CF |
|
