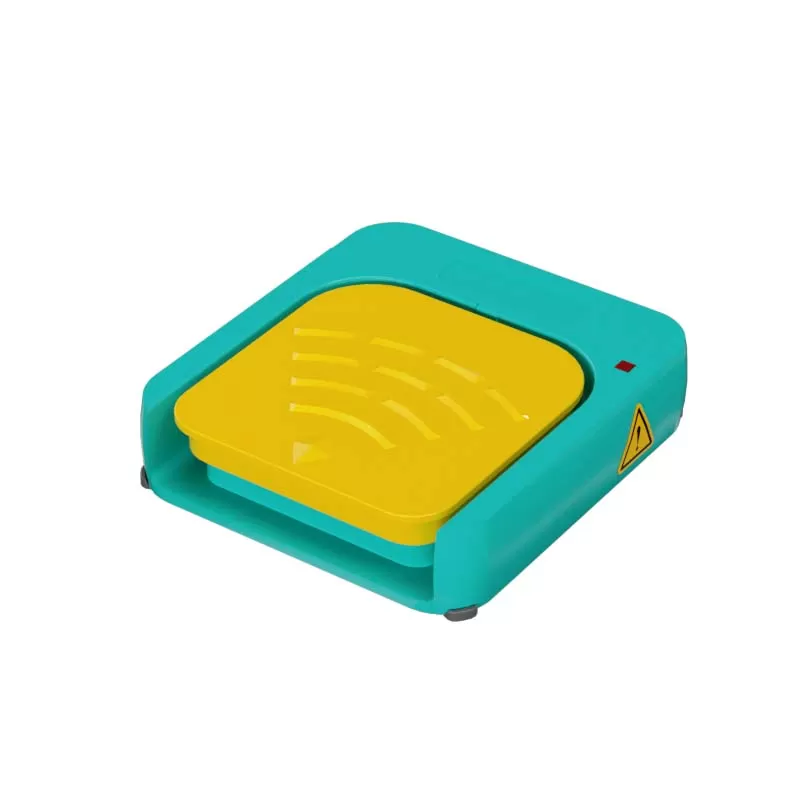

HRF-M9 wireless foot switch features a transmitter powered
by 4 AA batteries (DC 6V) and a compact USB receiver.
Through a simple "learning" pairing process, it supports flexible
operating modes, including one-to-multiple and multiple-to-one
control configurations.
Users can also clear previously paired output modes as needed.
  | |
 Pedal Number | No mark: 1 Pedal 2: 2 Pedals 3: 3 Pedals 4P: 4 Pedals |
 Pedal Color | Y: Yellow W: Milk white |
 Output Mode | G: USB wireless (2.4G) U: USB with cable M: Analog with cable H: Wireless switch |
 Analog output | No mark: Voltage 0-10V I: Current 4~20mA WJR-H: Switch receiver |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-M9 |  | 1A | 4 Dry Batteries (DC 6V, No.7) | Factory Standard |  | Plastic | Wireless | IP40 |
| HRF-M92 |  | 2A | 8 Dry Batteries (DC 6V, No.7) | Factory Standard |  | Plastic | Wireless | IP40 |
| HRF-M93 |  | 3A | 12 Dry Batteries (DC 6V, No.7) | Factory Standard |  | Plastic | Wireless | IP40 |
*Forothercustomizedmodels,pleasecontactwith usdirectly

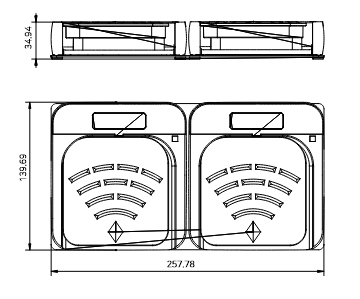

| HRF-M9 | HRF-M92 | HRF-M93 |
 |  |  |
