September. 27, 2025
From roaring guitar solos on stage to precise control in industrial settings, the humble foot switch is a marvel of hands-free operation. Whether you're a musician, machinist, or hobbyist, understanding its core functionality can help you use it more effectively, troubleshoot issues, and make better purchasing decisions.
As a leader in control solutions, KACON is here to demystify the technology. Let's break down the five essential things you need to know about the foot switch working principle.

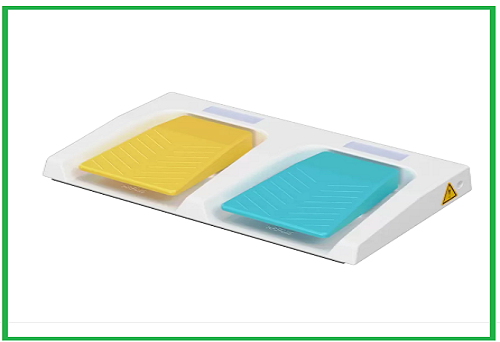

At its heart, a foot switch is an electromechanical device designed to be operated by your foot. Its fundamental working principle is simple: it opens or closes an electrical circuit.
Open Circuit (Off): When the pedal is in its default (unpressed) state, the internal electrical contacts are separated. This breaks the circuit, and no current can flow. The connected device remains off or in its default mode.
Closed Circuit (On): When you press the pedal with your foot, a mechanical action pushes the internal contacts together. This completes the circuit, allowing electrical current to flow. This signal then tells the connected device to turn on or change its state.
This simple "make or break" action is the foundation of all foot switches, though the mechanisms can vary.
To understand the working principle fully, it helps to know the main parts inside a typical KACON foot switch:
Housing/Casing: The durable, often rubber or metal, exterior that protects the internal components from physical damage and environmental factors like dust and moisture.
Pedal or Treadle: The part your foot presses. It's designed for comfort and to transfer force to the internal mechanism.
Actuation Mechanism: This is the core of the working principle. It can be:
Mechanical: A physical spring that returns the pedal to its original position after release.
Electronic: Uses a sensor (like a Hall effect sensor) with no physical contact wear, offering higher longevity.
Electrical Contacts: The conductive metals that touch (close the circuit) or separate (open the circuit) when the pedal is actuated.
Terminal/Connector: The point where the external cable is connected, allowing the foot switch to interface with your equipment.
This is one of the most important distinctions in foot switch operation. The "action" defines how the circuit behaves when the pedal is pressed.
A latching footswitch (also known as "maintained") works like a classic light switch. Press it once, the circuit closes and stays closed (even when you remove your foot). Press it again, and the circuit opens and stays open. This is ideal for turning an effect or machine on and leaving it on.
A momentary footswitch works like a doorbell. The circuit is only closed for as long as you keep your foot on the pedal. The moment you release it, a spring returns the pedal, and the circuit opens. This is perfect for functions that need short bursts, like a guitar pedal's "stomp box" effect or a drill press.
The way the physical press is translated into an electrical signal defines the switch's durability and feel.
Mechanical Footswitches: Use physical, metal contacts that snap together. They are known for their tactile "click" and audible feedback. Over time, the contacts can wear out or oxidize. Most standard foot switches fall into this category.
Electronic Footswitches: Use non-contact sensing, such as a magnetic Hall effect sensor. When you press the pedal, a magnet moves, and the sensor detects this change, sending a signal. KACON electronic footswitches are highly reliable, have a longer lifespan due to no contact arcing, and offer a smooth, silent operation.
Knowing the working principle helps you select the perfect KACON foot switch.
Determine the Action Needed: Do you need the effect to stay on (Latching) or only be active while pressed (Momentary)?
Consider the Mechanism: For high-cycle use or noisy environments, an electronic switch is superior. For general use where tactile feedback is desired, a robust mechanical switch is excellent.
Check the Electrical Rating: Ensure the switch can handle the voltage and current (amperage) of your equipment. Exceeding this rating is dangerous.
Evaluate the Environment: Will it be used in a workshop with oil and metal shavings? Look for a KACON switch with a high IP (Ingress Protection) rating for dust and water resistance.
Assess Durability: Look for a high mechanical life rating (number of presses) to ensure longevity.
Q: What is the role of a footswitch in a circuit?
A: Its primary role is to act as a remotely operated, safe switch that safely opens or closes an electrical circuit, thereby controlling the power or function of a connected device without using your hands.
Q: Can I use a latching footswitch for a guitar amp channel switch?
A: Yes, absolutely. A latching switch is standard for switching between an amp's clean and lead channels, as it toggles and maintains the state.
Q: My footswitch is unresponsive. What should I check?
A: First, check the cable and connection. Then, inspect the switch for physical damage or debris. Using a multimeter to check for continuity when pressing the switch is the best way to diagnose a faulty mechanism.
Q: Are KACON footswitches suitable for industrial machinery?
A: Yes. KACON offers a range of heavy-duty foot switches designed with robust housings and high electrical ratings specifically for industrial applications like press brakes and medical equipment.
The foot switch, a masterpiece of simple and effective design, empowers us to control complex machinery and creative tools with a simple tap of the foot. By understanding the five key aspects of its working principle—the basic open/close circuit, the internal components, the critical latching/momentary actions, and the mechanism types—you are now equipped to choose, use, and maintain your KACON foot switch with confidence.
Whether you're crafting the perfect tone or operating a critical machine, the right foot switch makes all the difference.
