How Do You Maintain a Limit Switch?

Limit switches are essential components in many industrial applications, used to monitor and control the position of machinery and devices. These switches are vital for ensuring proper functioning, safety, and reliability. To keep them performing optimally, regular maintenance is key. This guide provides essential maintenance tips on how to care for your limit switches to ensure long-lasting and efficient operation.

What is a Limit Switch?

A limit switch is a mechanical device used to detect the presence or position of an object, typically a moving part, in various machines or systems. It is often used to control machinery functions such as stopping, starting, or reversing movement when a predetermined limit is reached. Limit switches can be found in elevators, conveyor belts, robotic arms, and many other automated systems.

Limit switches are typically designed with a lever, roller, or pushbutton actuator that makes contact with the moving part of the machine. When the part reaches the set limit, the switch sends a signal to activate or deactivate a control circuit, ensuring the machine operates within safe parameters.

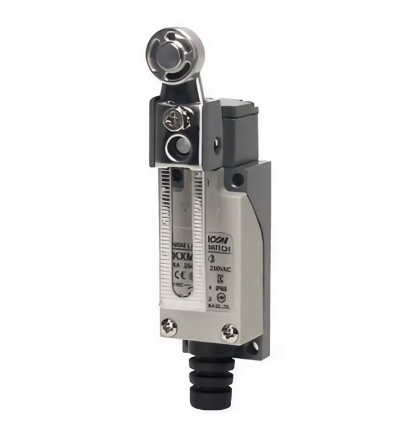

KXM Series Limit Switch

Why Is Limit Switch Maintenance Important?

Proper maintenance of limit switches is critical for avoiding costly downtime, reducing the risk of accidents, and ensuring equipment runs efficiently. Over time, dirt, wear, or electrical faults can affect the switch’s operation, leading to misalignments, inaccurate readings, or total failure. Regular maintenance helps identify and resolve these issues before they cause significant operational disruptions.

Some key reasons to maintain your limit switches include:

• Safety: Ensuring the switch operates as intended to avoid potential hazards or equipment damage.

• Efficiency: Well-maintained switches keep machinery running at peak performance, reducing energy costs and preventing breakdowns.

• Prolonged Service Life: Regular inspections and maintenance help extend the lifespan of your limit switches, saving you money on replacements.

Maintenance Tips for Limit Switches

Maintaining your limit switches is a straightforward process, but it requires regular attention. Here are some effective tips for keeping your switches in top condition:

1. Clean the Switch Regularly: Dirt, dust, and debris can accumulate on the limit switch, especially in industrial environments. Regular cleaning ensures that the switch operates smoothly. Use compressed air to blow out dirt and debris, and wipe the switch body with a soft, dry cloth to avoid scratches or damage. If necessary, use a gentle cleaning solution to remove stubborn grime, but avoid harsh chemicals that could damage the switch components.

2. Inspect the Actuator Mechanism: The actuator mechanism (lever, roller, or pushbutton) is a key part of the limit switch. Check the actuator for signs of wear, damage, or misalignment. Ensure that it moves freely and doesn’t get stuck. Misaligned or damaged actuators can prevent the switch from accurately detecting the position of the machine part. If the actuator is worn out, replace it promptly.

3. Check the Wiring and Connections: Faulty wiring is one of the most common causes of limit switch malfunction. Periodically inspect the wiring for fraying, corrosion, or loose connections. Tighten any loose terminals and replace damaged wires to prevent electrical failures. Ensure that all connections are secure and insulated to prevent short circuits or electrical hazards.

4. Test the Switch’s Functionality: Regularly test the limit switch to ensure it is operating correctly. Perform a functional test by manually moving the machine part to the limit position and observing whether the switch triggers the intended action (e.g., turning off the motor or reversing direction). Check that the switch responds at the right moment and that the control circuit is properly activated or deactivated.

5. Lubricate the Moving Parts: The actuator and other moving parts of the limit switch should be lubricated regularly to reduce friction and wear. Use a lubricant that is appropriate for the environment and conditions in which the switch operates. Be sure to avoid over-lubrication, which can attract dust and grime, leading to additional wear. Apply lubricant sparingly to the moving components, focusing on the pivot points and joints.

6. Monitor the Operating Environment: Limit switches are often used in harsh environments where extreme temperatures, moisture, vibration, or chemical exposure are present. Ensure the switch is properly rated for these conditions. Consider using protective covers or enclosures to shield the switch from dirt, water, and other contaminants. Regularly check the surrounding environment to ensure the switch is not being subjected to excessive wear.

Signs Your Limit Switch Needs Attention

While regular maintenance can prevent many issues, it's also important to recognize the signs that your limit switch may need repair or replacement:

• Intermittent Operation: If the switch occasionally fails to trigger the intended action or only works intermittently, it may need recalibration or replacement.

• Erratic Machine Behavior: Unpredictable movement or stopping of machinery could be a sign that the limit switch is not properly detecting the position.

• Visible Wear or Damage: Physical damage to the actuator, switch body, or wiring can cause a failure. If you notice cracks, fraying wires, or rust, the switch should be inspected and repaired.

• No Response: If the switch does not trigger the intended action when the machine part reaches the limit, it may need cleaning, re-wiring, or replacement of the internal components.

Frequently Asked Questions About Limit Switch Maintenance

Q1: How often should limit switches be maintained?

A: The frequency of maintenance depends on the operating conditions. For most industrial applications, limit switches should be inspected every 3-6 months. However, in harsh environments, more frequent checks may be necessary.

Q2: Can I repair a damaged limit switch myself?

A: Simple maintenance tasks like cleaning and lubrication can typically be done by operators. However, repairing a damaged limit switch, especially if there’s internal electrical failure or broken components, should be handled by a qualified technician or the manufacturer.

Q3: What causes a limit switch to fail prematurely?

A: Common causes of premature failure include improper installation, environmental factors (such as high moisture, dust, or extreme temperatures), electrical surges, and wear from overuse or mechanical stress.

Conclusion: Keep Your Limit Switches in Top Shape

Regular maintenance is essential for the longevity and reliability of your limit switches. By following the maintenance tips outlined above—cleaning, inspecting, testing, lubricating, and checking connections—you can ensure that your limit switches continue to operate at peak performance, minimizing downtime and preventing costly repairs. Regular upkeep also contributes to safer and more efficient machine operations, keeping your equipment running smoothly for years to come.

If you're looking to replace or upgrade your limit switches, always choose high-quality components that match the requirements of your application. Proper selection and maintenance go hand-in-hand to guarantee smooth and efficient operations in the long run.
