A pedal switch is a simple yet powerful device that allows hands-free control over electrical equipment. Whether used in industrial machinery, medical devices, musical instruments, or home applications, pedal switches improve efficiency, safety, and convenience. In this article, we will explore the working principles, types, benefits, and applications of pedal switches, helping you understand why they are widely used across various industries.

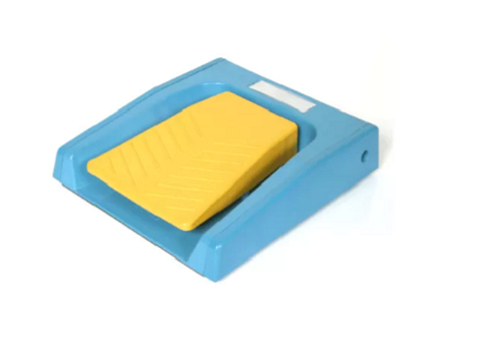

What is a foot pedal switch? A pedal switch is an electrical switch operated by foot pressure rather than hand action. It functions similarly to a hand-operated switch, but its foot-operated design allows the user to maintain their hands free for other tasks. Pedal switches are commonly used to activate or deactivate equipment without interrupting ongoing work processes.
The operation of a pedal switch is straightforward but depends on the internal mechanism and type of switch. Here’s a breakdown of the working principle:
When the user presses down on the pedal, it completes an electrical circuit, allowing current to flow and activating the connected device. Releasing the pedal breaks the circuit, turning off the device. This hands-free method is highly convenient in situations where manual operation is impractical or unsafe.
Pedal Pad: The part you press with your foot.
Spring Mechanism: Returns the pedal to its original position when released.
Electrical Contacts: Complete or break the circuit when the pedal is pressed or released.
Housing: Protects the internal mechanism from dust, moisture, and impact.
Pedal switches come in various types, each designed for specific applications:
This type of switch is active only while the pedal is pressed. Releasing the pedal immediately deactivates the connected device. Momentary switches are commonly used in sewing machines, musical instruments, and medical equipment.
A toggle pedal switch changes the state of the circuit with each press. Pressing the pedal once turns the device on, pressing it again turns it off. This type is suitable for lighting, industrial machinery, and other applications where continuous operation is needed.
Double-pole pedal switches can control two circuits simultaneously. They are often used in machines requiring dual control or safety mechanisms, ensuring that both circuits are activated or deactivated together.
Rocker pedals allow gradual control, often used for speed adjustment in electric tools or volume control in musical devices. The more pressure applied, the stronger the output signal.
Pedal switches are versatile and used in many sectors. Some common applications include:
Industrial Machinery: Machine tools, presses, and lathes often rely on pedal switches to allow operators to work hands-free and maintain safety.
Medical Equipment: Surgical tools, dental chairs, and hospital beds often use foot-operated switches to maintain sterile conditions and hands-free control.
Musical Instruments: Electric guitars, keyboards, and synthesizers use pedal switches to control effects, sustain notes, or change settings.
Home Appliances: Pedal-operated sewing machines, mixers, and other household devices allow users to perform tasks efficiently while keeping hands free.
Photography and Filming: Foot switches can trigger cameras or lights remotely, useful in studio setups or hands-on activities.
Pedal switches offer several advantages, making them a preferred choice for many applications:
Hands-Free Operation: Frees the user’s hands for other tasks, increasing efficiency.
Improved Safety: Keeps the operator away from hazardous equipment controls, reducing the risk of accidents.
Ergonomic Design: Reduces strain by allowing natural foot motion instead of repetitive hand movements.
Precision Control: Offers momentary or continuous control for precise operation in sensitive tasks.
Durability: Designed to withstand repeated foot presses in industrial and professional settings.
Installing a pedal switch is generally simple, but it requires attention to electrical safety. Here’s a basic step-by-step guide:
Select a pedal switch suitable for your equipment, considering voltage, current rating, and type (momentary, toggle, etc.).
Always switch off and unplug the device before installation to avoid electric shock.
Connect the pedal switch wires according to the manufacturer’s instructions. Momentary switches usually have two terminals; toggle switches may have more.
Place the pedal in a comfortable and stable location. Some pedals come with anti-slip pads or mounting brackets.
Turn on the equipment and press the pedal to ensure it works correctly. Verify that the device responds as expected and there are no loose connections.
To ensure longevity and optimal performance, follow these maintenance tips:
Keep the pedal clean and free from dust and debris.
Inspect the wiring periodically for signs of wear or damage.
Lubricate moving parts if necessary, following manufacturer guidelines.
Avoid excessive force that may damage the internal mechanism.
Store in a dry environment to prevent corrosion.
When selecting a pedal switch, consider:
The type of operation required: momentary, toggle, or variable control.
The voltage and current requirements of your device.
The environment in which it will be used: industrial, medical, or home settings.
Durability and material quality, especially for heavy-duty applications.
Comfort and ergonomic design for long-term use.

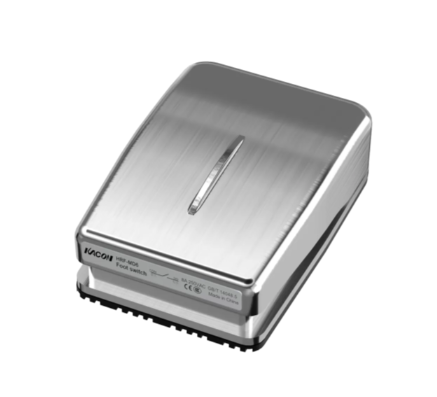

Brands like Kacon offer reliable options that meet international safety and quality standards, making them suitable for professional applications.
Pedal switches are versatile devices that simplify hands-free operation, enhance safety, and increase efficiency across various applications. Understanding how a pedal switch works, the different types available, and proper installation and maintenance practices ensures optimal performance and long-lasting use. Whether for industrial machinery, medical equipment, musical instruments, or home appliances, choosing the right pedal switch can make a significant difference in workflow and safety.
A pedal switch is used to control electrical devices hands-free, allowing users to operate equipment with their foot. It is commonly used in industrial machinery, medical tools, musical instruments, and household appliances.
A momentary pedal switch is active only while the pedal is pressed and stops the device when released. A toggle switch changes the device state with each press, staying on until pressed again.
Yes, but it is essential to select a pedal switch rated for the voltage and current of the equipment. Heavy-duty industrial switches are designed for high-power applications.
Yes, foot-operated switches maintain hands-free control, reduce contamination risk, and are commonly used in surgical and dental equipment. Ensure the switch meets medical safety standards.
Keep it clean, inspect wires for damage, lubricate moving parts as needed, avoid excessive force, and store in a dry environment to prevent corrosion. Regular maintenance ensures reliability and safety.
