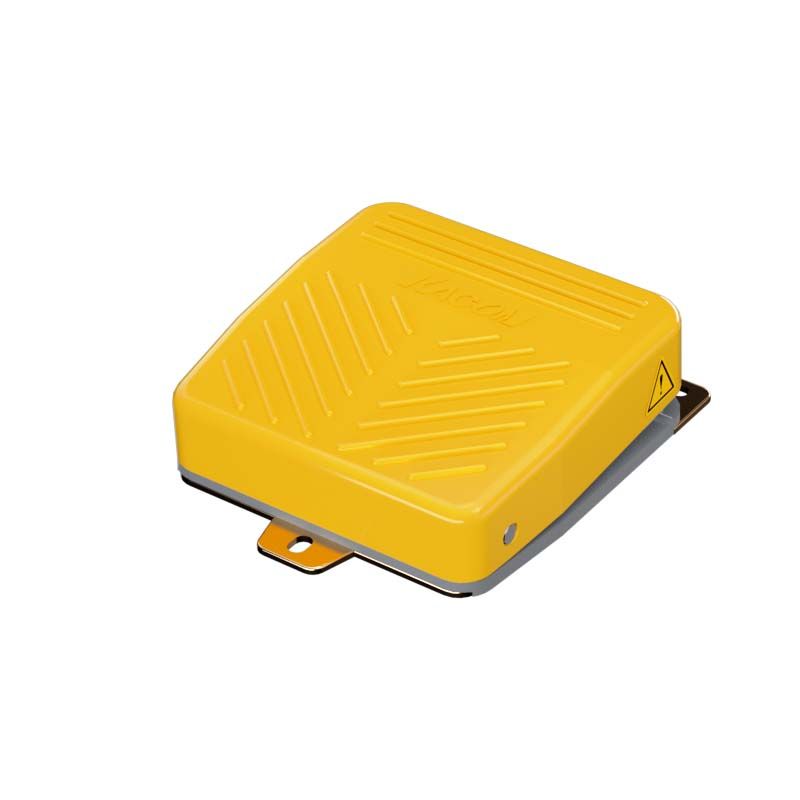

The HRF-M2 Plastic Foot Switch by KACON is a high-performance plastic foot switch designed for safety, durability, and ease of use in industrial and automation applications. Made with ABS fire-retardant housing and base, this foot switch provides excellent impact resistance and wear-proof performance, making it ideal for demanding environments.
In the modern industrial landscape, where efficiency and safety are paramount, a component as seemingly simple as a foot switch can be a critical node affecting overall productivity and operator safety. The KACON HRF-M2 Plastic Foot Switch is engineered to industrial-grade standards to redefine durability and reliability. We understand you need equipment that can withstand daily stress, resist accidental splashes and dust, and deliver consistent, stable performance—this is the core purpose behind the HRF-M2's design.
Robust Construction: Fire-retardant ABS housing and base offer excellent impact resistance and mechanical strength.
Safety & Reliability: Features a built-in UL/VDE-certified micro switch with 24K gold-plated contacts for stable electrical conductivity and safe operation.
Superior Protection: IP54 rating (upgradable to IP67) protects against dust and water splashes, ideal for general industrial environments.
Easy Installation: A sturdy stainless steel base with mounting holes ensures firm and secure mounting.
Flexible Customization: Available in 8 standard colors with customizable cable configurations to meet your specific needs.
The HRF-M2 is the go-to solution for precise foot-activated control across various industries:
Industrial Automation: Start/stop control at assembly stations, freeing operators' hands for other tasks.
Packaging & Marking Equipment: Triggering sealing, coding, or marking processes to enhance workflow efficiency.
Medical & Lab Equipment: Enabling hands-free or sterile operation for sensitive environments.
Test & Measurement Instruments: Controlling the start and end of test cycles to ensure precise operation.
Food Processing Machinery (where hygiene regulations allow): The plastic construction and IP rating suit damp environments requiring washdown.
| Category | Specification |
|---|---|
| Model | HRF-M2 |
| Housing/Base Material | Fire-Retardant ABS Plastic |
| Base Plate Material | Stainless Steel |
| Internal Switch | V15F-01C Momentary Micro Switch |
| Contact Material | 24K Gold-Plated |
| Protection Rating | IP54 (Customizable to IP67) |
| Standard Cable | 2-core x 0.5mm² x 2m |
| Electrical Certifications | CE (IEC/EN 60947-5-1), CCC, IEC/EN 60529 |
| Internal Switch Certs | CRUUS, VDE, CE, CCC |
Cable
-->HRF-M2 Regular 3*0.5mm², round line, gray; Customized wire diameter must not be greater than Φ6.6mm; Conventional wiring of multi-core wires below 0.5² can be customized within the diameter of Φ6.6: common end + normally open + normally closed, can be customized; Common terminal + normally closed, common terminal + normally closed;
Beyond our standard product, we offer flexible solutions to meet your unique application requirements:
Enhanced Ingress Protection: Upgrade the protection rating to IP67 for superior resistance against dust and water immersion.
Color Coding: Choose from a wide range of custom colors for easy area management, safety coding, or brand matching.
Cable Configuration: Customize cable specifications, length, and wiring schemes (e.g., NO/NC) to fit your machine's design.
Whether you're integrating a foot switch into automation equipment, machinery, or testing systems, the HRF-M2 offers reliable switching performance, customizable options, and long-lasting durability. Backed by multiple international certifications and built with industrial-grade materials, this foot switch is trusted by engineers and manufacturers worldwide.
Ready to enhance your equipment with reliable control?
Customization for foot switch
// For plastic connectors, terminals, they can use the brand specified by the customer, offer connectors like USB, DB9, audio connector, aviation plug(waterproof or not). We provide USB key setting service, customers can choose a key on the keyboard, or download the driver, according to the video operation guide operation, specific requirements please contact customer service.
// 2m, 3m, 5m cable can be chosen, outdoor sunscreen plastic powder can be customized
// Slight changes to existing products do not involve modification of molds, at no cost to the customer.
