180-550VAC ultra wide input for 1-phase or 2-phase
Protections：Short circuit/Over load/Over voltage/Over temp.
Efficiency up to 91%，low power consumption
Built-in active PFC
DC OK relay contact
Mounting on DIN rail TS-35/7.5 or 15
Cooling by free air convection
100% full load burn-in test
3 years warranty
  | |
 Output Power | 60: 75W 120: 120W 240: 150W 480: 240W |
 Output Voltage | 5: 5VDC 12: 12VDC 15: 15VDC24:24VDC 48:48VDC |
| Model | KMH60 | KMH120 | KMH240 | KMH480 | |
| Input Voltage | 180~550VAC 50/60Hz ; 254 ~ 780VDC | ||||
| Input Current | 400VAC | 0.4A | 0.7A | 1.2A | 3A |
| 230VAC | 0.7A | 1.2A | 0.8A | 1.6A | |
| Output Voltage Output Current | Power | 60W | 120W | 240W | 480W |
| 5V | 10A(50W) | * | * | * | |
| 12V | 5A | 10A | * | * | |
| 15V | 4A | * | * | * | |
| 24V | 2.5A | 5A | 10A | 20A | |
| 48V | 1.25A | 2.5A | 5A | 10A | |
| Overload Protection | Yes automatic reset | End after 3s, Reset | |||
| Overvoltage Protection | Yes automatic reset | End after 3s, Reset | |||
| Overheating Protection | Yes automatic reset | End after 3s, Reset | |||
| Safety standards | IEC/EN 62368-1 | ||||
| EMC standards | EN 55032Class A/Class B, EN 61000-3-2,3 ,EN 61000-4-2, 3, 4, 5, 6, 8, 11, | ||||
| Ambient Temperature | -30 ~ 85℃ | -25 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ | |

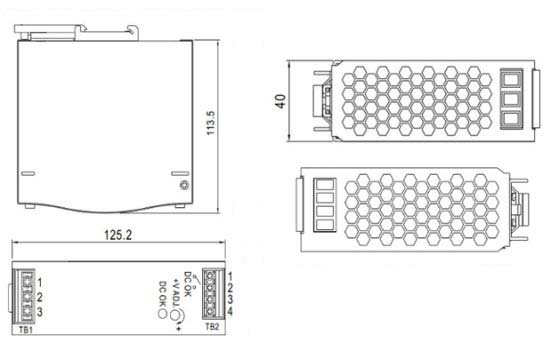

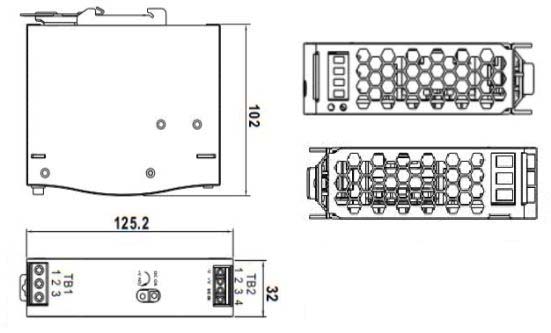

| KMH60 | KMH120 |
 |  |

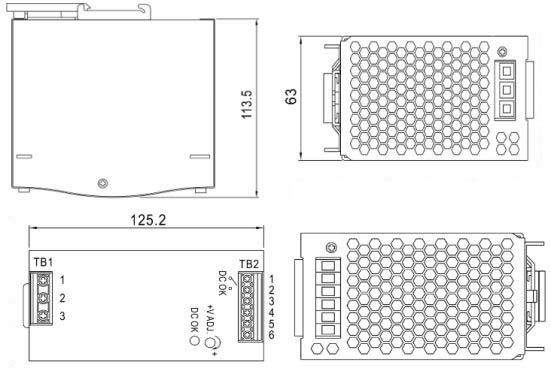

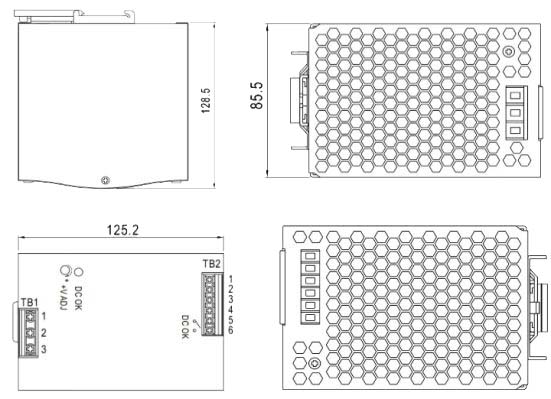

| KMH240 | KMH480 |
 |  |
