Universal AC input/Full range
Protections:short circuit/overload/over voltage/over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
100% full load burn in-test
3 years warranty
  | |
 Output Power | 75: 75W 120: 120W 150: 150W 240: 240W 480: 480W |
 Output Voltage | 12: 12VDC 24: 24VDC 48: 48VDC |
| Model | KMT75 | KMT120 | KMT150 | KMT240 | KMT480 | |
| Input Voltage | 90-264VAC 50/60Hz | 96-264VAC 50/60Hz ; 120 ~ 370VDC | 90-264VAC 50/60Hz ; 127 ~ 370VDC | |||
| Input Current | 115VAC | 1.6A | 2.25A | 2.6A | 2.5A | 4.8A |
| 230VAC | 0.9A | 1.3A | 1.7A | 1.3A | 2.4A | |
| Output Voltage Output Current | Power | 75W | 120W | 150W | 240W | 480W |
| 12V | 6.3A | 10A | 12.5A | 14A | 25A | |
| 24V | 3.2A | 5A | 6.5A | 10A | 20A | |
| 48V | 1.6A | 2.5A | 3.2A | 5A | 10A | |
| Overload Protection | Yes automatic reset | |||||
| Overvoltage Protection | Yes automatic reset | |||||
| Overheating Protection | Yes automatic reset | |||||
| Safety standards | IEC/EN 62368-1 | |||||
| EMC standards | EN 55032Class A, EN 61000-4-2, 3, 4, 5, 6, 8, 11, EN 61000-3-2,3 | |||||
| Ambient Temperature | -20 ~ 60℃ | -30 ~ 70℃ | -20 ~ 60℃ | -20 ~ 70℃ | -40 ~ 70℃ | |

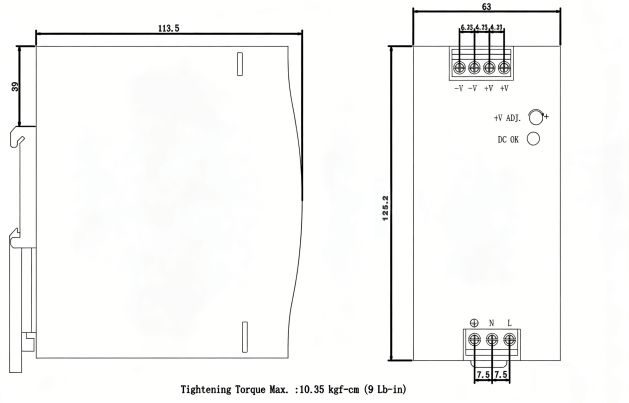

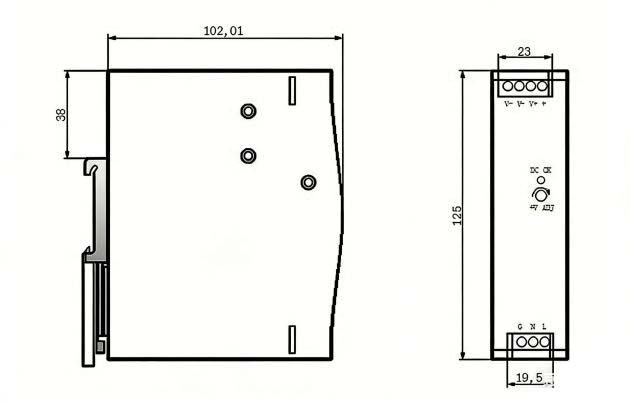

| KMT75 | KMT120 / KMT150 |
 |  |

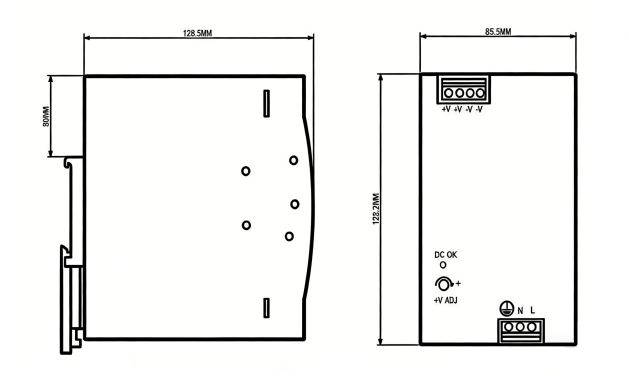

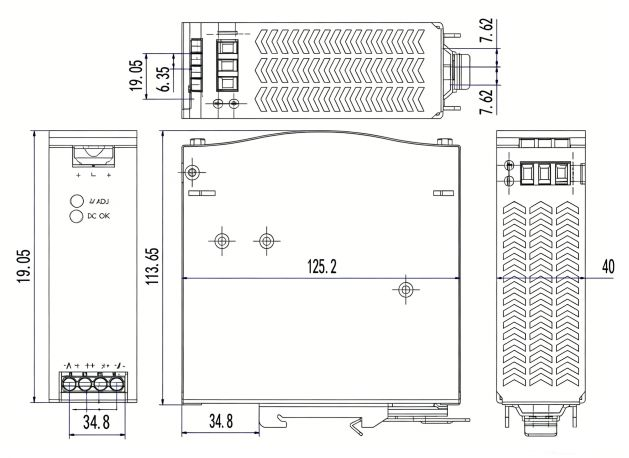

| KMT240 | KMT480 |
 |  |
