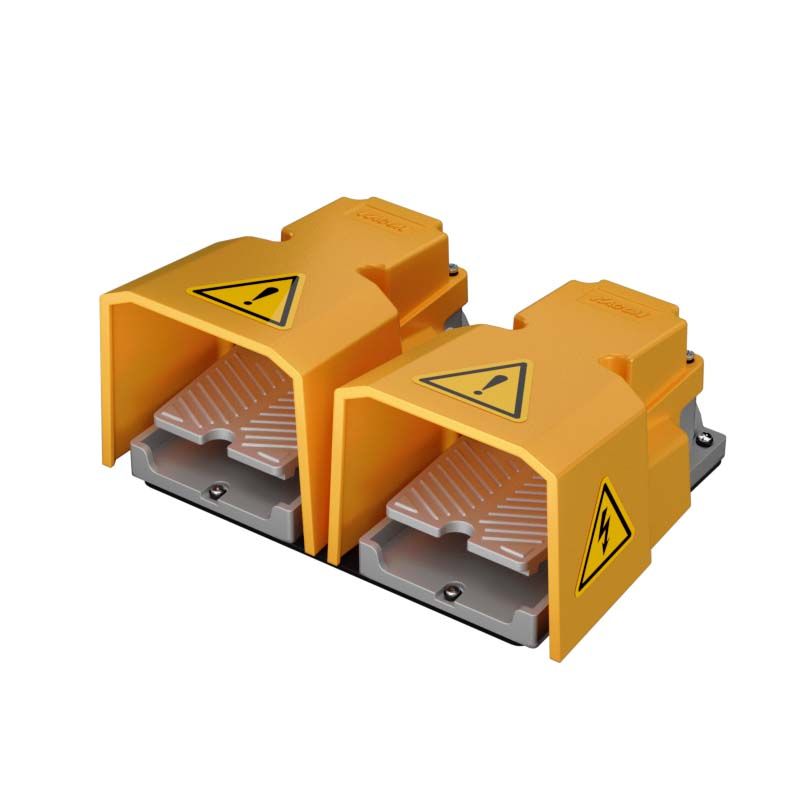

HRF-HD Series heavy-duty aluminum alloy foot switch is a versatile,
wide-range control solution. Finished in a high-visibility warning
yellow plastic coating, it provides superior resistance to friction,
thermal fluctuations, and chemical corrosion.
This rugged design ensures high safety standards and reliable
protection performance.
  | |
 Pedal Number | 20: 2 Pedals 30: 3 Pedals |
 Contact Mode | 1: 1a + 1b 2: 2a + 2b |
 Protection Type | No mark: Top cover P: Three shields |
 Connector | No mark: Standard (Without) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: Without cable 2: 18AWG * 2m 3: 18AWG * 3m 5: 18AWG * 5m |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-HD201P |  | 2C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
| HRF-HD301P |  | 3C | 15A 250VAC | Z15G-10B (UL,CE,CUL, KC, CCC certified) |  | Aluminu mdie-casting | 1/2 Inch Tap, the flexible cable can be attached (zinc connector 10 ~ 16) | IP65 |
*Forothercustomizedmodels,pleasecontactwith usdirectly
| HRF-HD201P | HRF-HD301P |
 |  |
