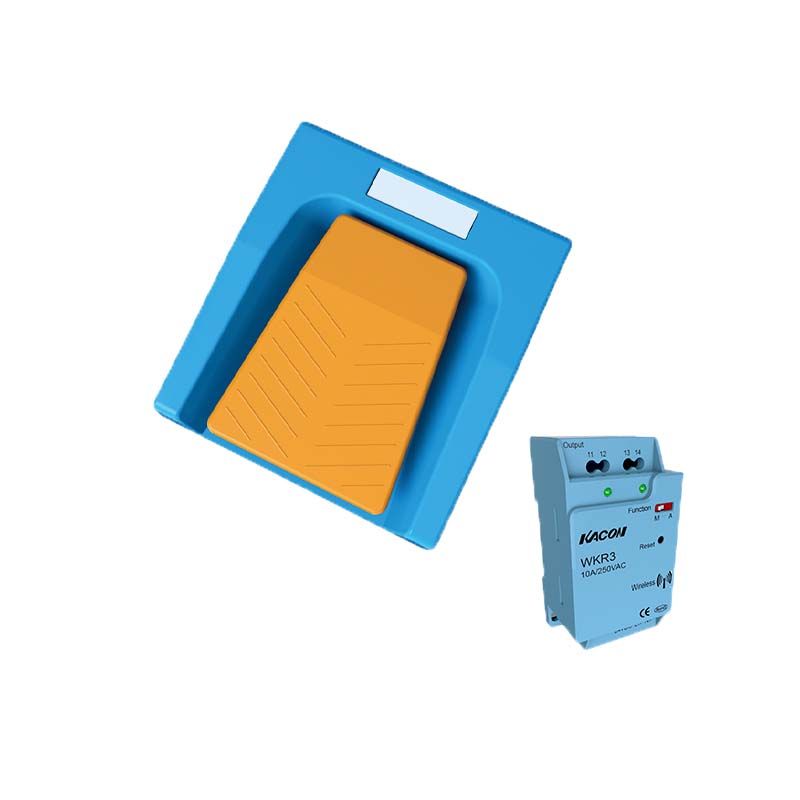

HRF-M5 WIFI Series medical foot switch features 433MHz RF
communication technology to deliver a completely wireless operation.
This design eliminates cable clutter in the workspace, facilitating effortless
cleaning and unrestricted mobility. Engineered for reliability, the device features
robust anti-interference capabilities and ultra-low power consumption,
ensuring long-term operation no need battery.
  | |
 Pedal Number | No mark : 1 Pedal 2: 2 Pedals 3: 3 Pedals |
 Body Color | No mark: Blue L: Milk white C: Grey |
 Pedal Color | Y: Yellow R: Red B: Blue W: White |
 Connection Block | No mark: Standard J: Transformation block |
 Receiver | No mark: WKR3 / 433MHz (5A) WJR: WJR/433MHz (5A) U: USB connection |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-M5-TRF |
| 1A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |
| Plastic | Wireless | IPX7 |
| HRF-M52-TRF |  | 2A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |
| Plastic | Wireless | IPX7 |
| HRF-M5-TRF-WJR |
| 1A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |  | Plastic | Wireless | IPX7 |
| HRF-M5-TRF-U |
| 1A | 8A 250VAC | VV15F-01C (UL, CUL, VDE, CE, KC, CQC certified) + 24k gold plat |
| Plastic | Wireless | IPX7 |
*Forothercustomizedmodels,pleasecontactwith usdirectly

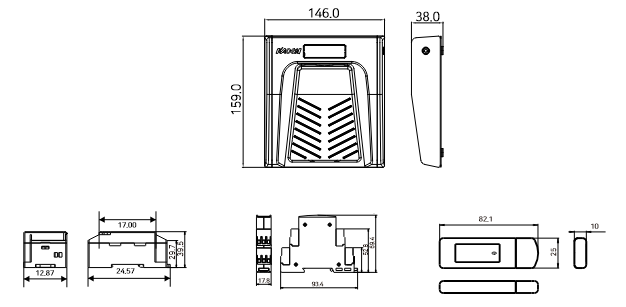

| HRF-M5-TRF / HRF-M5-TRF-WJR / HRF-M5-TRF-U | HRF-M52-TRF |
|
|
