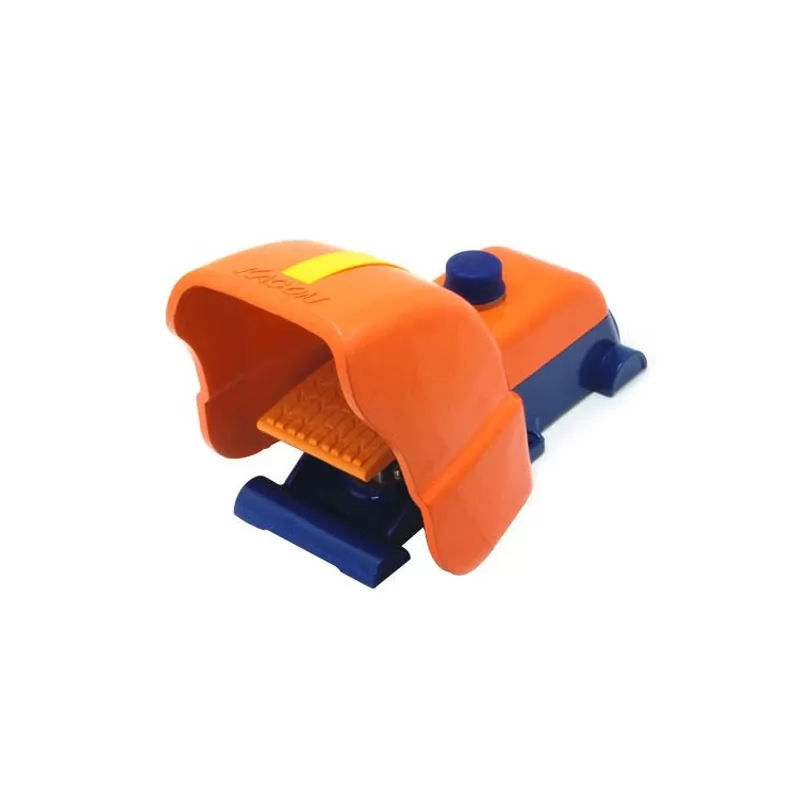

The KACON HRF-HD8 Industrial Foot Switch is a heavy duty footswitch engineered for reliable operation in the most demanding industrial environments. Widely used in automation systems, machinery control, and various factory applications, this foot pedal plays an essential role in ensuring safe and efficient production processes. It is the ideal choice for enhancing productivity and operational safety in harsh conditions, providing reliable foot control that frees up the operator's hands.
The HRF-HD8 features an ergonomic, low-profile pedal with an anti-skid surface for secure operation. Its arc-shaped housing offers 200J impact resistance, while the powder-coated exterior ensures durability in harsh environments. A blue LED gives clear visual feedback, and a protective cover prevents accidental activation from falling objects..
Robust & Durable: Features an impact-resistant arc-shaped housing (meeting the 200J anti-impact benchmark) with an electrostatic powder coating for superior endurance in tough working conditions.
Safe & Secure: Includes a built-in mechanical interlock to prevent accidental simultaneous circuit operation and a smooth protective cover. Its IP67 high protection rating (achieved with a double silicone gasket) makes it impervious to dust, moisture, and splashes.
Long-Lasting Stability: The core micro switch offers a mechanical life of up to 1 million operations. The 24K gold-plated contacts ensure stable signal transmission and excellent conductivity.
Ergonomic Design: The low-profile pedal with an anti-skid surface and a clear blue LED indicator light enhances operator comfort, security, and situational awareness.
For your convenience, key technical parameters are summarized in the table below:
| Category | Specification |
|---|---|
| Key Certifications | CE, CCC, UL, c-UL |
| Protection Rating | IP67 (Dust-tight and protected against immersion) |
| Housing Material | Aluminum Alloy |
| Load Capacity | Dependent on internal micro switch (e.g., KSB1 switch supports 20A/250VAC) |
| Mechanical Life | Up to 1,000,000 cycles |
| Contact Material | 24K Gold-Plated |
| Conduit Inlets | Standard PG 16 and 1/2" -14 NPT |
| Installation | Two mounting holes for floor or equipment mounting |
| Internal Switch Options | KSB1, Z15G-10B, V15F-060C, among others |
The HRF-HD8 series offers a variety of configurations to meet diverse application needs:
Operational Functions: Options include Basic, Alternate Latching, 3-Position Operation, Safety, and Pedal Guard (anti-accidental activation) types.
Additional Features: Optional high-brightness "Sapphire" LED indicator, carrying handle, emergency stop switch, and multi-color marking plates.

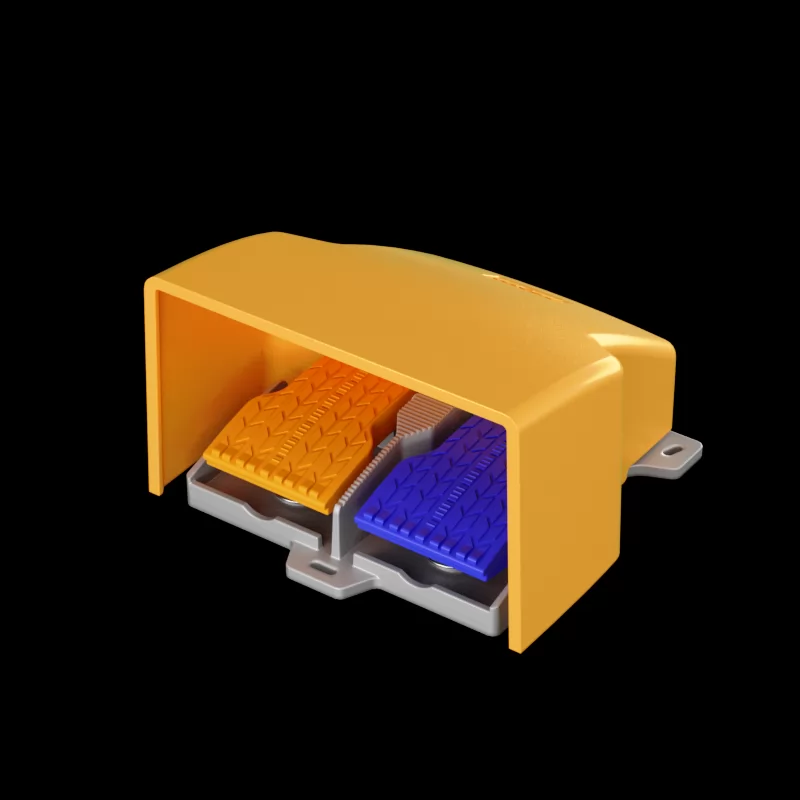

Combined Use: Available in double, triple, and multiple combined units based on requirements.
| HRF-HD8 | |||||
 |  |  |  |  | |
| ※ Safety-reset type | ※Anti-operation -error lever type | ※ Two-step operation type | ※ Self-holding type | ※ Pedal connection products | |
| Part Number | HRF-HD8S811 | HRF-HD8L811 | HRF-HD8S212 | HRF-HD8S311 | HRF-HD8S202P |
| Contact Form | 1N/O+1N/C | 2N/O | 1N/O+1N/C | 2N/O/1NO+1N/C | |
| Rated Current | 20A 250VAC | ||||
| Built-in Switch | KSB1-S | KSB1 | KSB1 | KSB1-A | KSB1 |
| Material | Aluminum die-casting | ||||
| Certification | CE, CCC, UL | ||||
| Degree of Protection | IP67 | ||||
※ Please refer to the catalog for the detailed product selection and specifications.
The HRF-HD8 Heavy Duty Foot Switch is widely applied in the following fields:
Industrial Machinery: Ideal for use with punch presses, bending machines, spot welders, and sheet metal processing equipment as a safe and reliable start/stop or control component.
Factory & Automation: Serves as an enabling switch in automated production lines where manual operation is inconvenient.
High-Safety Applications: Its safety-oriented design and anti-accidental activation features meet the high safety standards required for equipment like metal-cutting machine tools.
Choosing the HRF-HD8 means selecting:
Exceptional Durability: Robust construction and high-quality materials guarantee long-term, stable performance in harsh industrial settings.
Enhanced Safety: Multiple safety designs (mechanical interlock, anti-accidental activation pedal, protective cover) and international certifications effectively protect both personnel and equipment.
Flexible Applicability: A wide range of models, configurations, and customization options allow it to adapt flexibly to various complex application requirements.
We offer flexible customization services, including custom cable specifications and lengths, and special color marking plates to meet your specific needs. [Click here]
