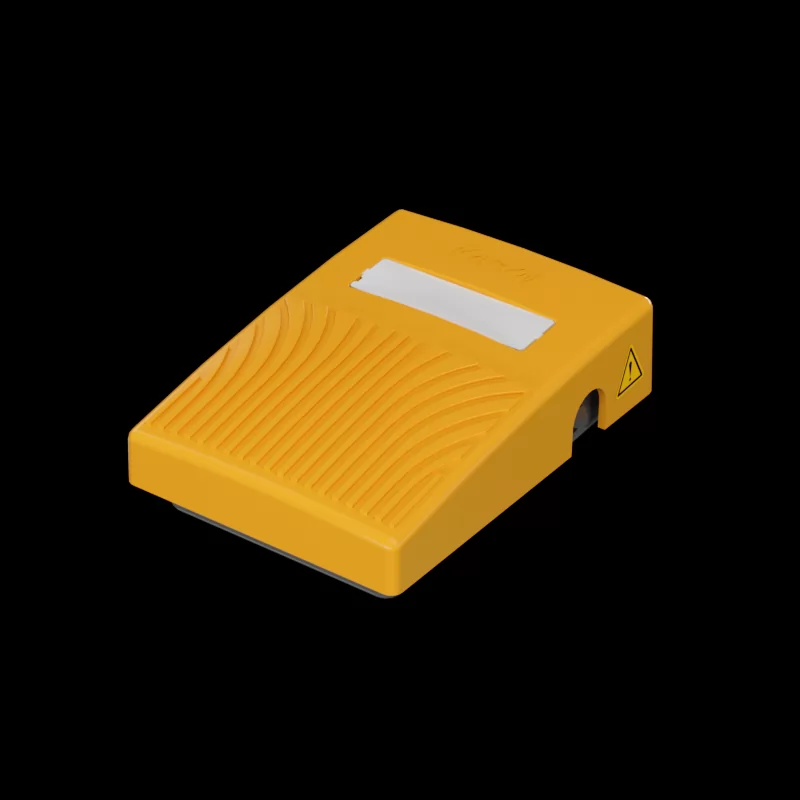

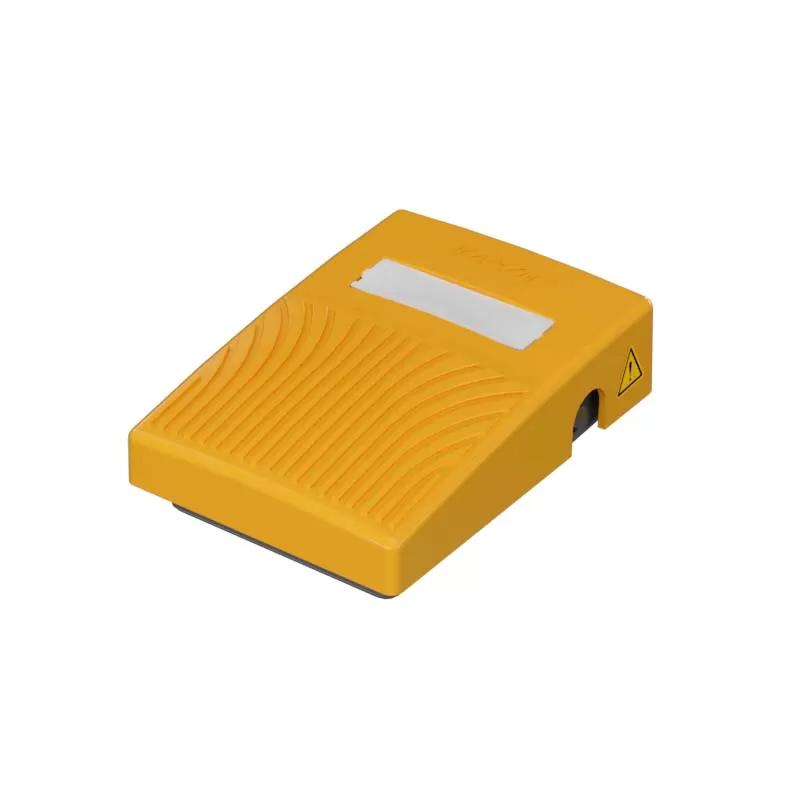

HRF-M8 Series medical foot switch features a flame-retardant, reinforced
engineering plastic housing, delivering high structural strength and exceptional
resistance to impact, chemicals, and aging. An integrated recessed nameplate
ensures clear, permanent marking of function codes without the risk of fading
or detachment. The rear-tread design is engineered for ergonomic comfort,
enabling long-term operation without user fatigue.
As a specialized manufacturer of medical-grade foot control devices, we provide high-performance medical foot switch solutions designed for precision, hygiene, and long-term reliability. Our products are widely used in hospitals, dental clinics, and laboratory environments where hands-free operation is critical.
The HRF-M8 Medical Foot Switch is engineered with advanced materials and ergonomic design, making it ideal for demanding healthcare applications. Whether you are sourcing a medical foot pedal for OEM integration or looking for a durable alternative to brands like Kacon, our solution offers excellent performance, customization flexibility, and competitive value.
The HRF-M8 Medical Foot Switch features a flame-retardant reinforced engineering plastic housing that ensures superior durability and safety. It is built to withstand frequent use, chemical exposure, and long-term aging, making it highly suitable for medical environments.
An integrated recessed nameplate provides permanent and clear function identification, preventing fading or detachment over time. The ergonomic rear-tread pedal design enhances operator comfort, allowing prolonged use without fatigue.
High-Strength Engineering Plastic Housing
Flame-retardant and reinforced material ensures durability, safety, and long service life.
Excellent Chemical & Impact Resistance
Designed to perform reliably in medical environments with exposure to disinfectants and frequent handling.
Ergonomic Pedal Design
Rear-tread structure supports comfortable, fatigue-free operation during extended procedures.
Permanent Marking System
Recessed nameplate ensures clear and long-lasting function labeling.
Flexible Configuration Options
Supports multiple connectors, cable lengths, and pedal color combinations for different applications.
  | |
 Pedal Number | C: Grey T: Tiffany blue |
 Pedal Color | Y: Yellow R: Red A: Orange G: Green B: Blue W: White K: Black |
 Connector | No mark: Standard (Without ) A: 6.3mm Audio connector D: DB9 serial port U: USB connection |
 Cable | No mark: 20AWG * 2m 3: 20AWG * 3m 5: 20AWG * 5m |
The HRF-M8 is built with flame-retardant materials and robust internal components, ensuring safe operation in sensitive environments such as operating rooms and diagnostic facilities.
With high resistance to wear, chemicals, and aging, this medical foot switch maintains consistent performance even under intensive daily use.
The carefully engineered pedal structure reduces strain on the operator, improving workflow efficiency and comfort.
We support custom configurations including pedal number, color coding, connectors, and cable specifications to meet specific equipment requirements.
The HRF-M8 Medical Foot Switch is widely used in:
Surgical and operating room equipment
Dental chairs and treatment units
Medical imaging systems
Laboratory instruments
Rehabilitation and therapy devices
This product enables precise hands-free control, helping medical professionals maintain sterility and improve operational efficiency.
Experienced Manufacturer
We specialize in high-quality medical foot switch production with strict quality control.
Global Standards Compliance
Designed to meet international safety and performance requirements.
OEM/ODM Support
Flexible customization for medical device manufacturers and distributors.
Competitive Alternative to Kacon
Offers comparable quality with better customization and pricing advantages.
Fast Response & Reliable Supply
Stable production capacity ensures timely delivery for bulk orders.
If you are looking for a reliable medical foot switch for your equipment, the HRF-M8 series is an ideal choice. Designed for durability, precision, and comfort, it delivers consistent performance in critical medical applications.
Contact us today to request a quote, customization options, or technical support. Upgrade your equipment with a professional-grade foot control solution you can trust.
A medical foot switch is used to control medical equipment hands-free, allowing healthcare professionals to operate devices safely while maintaining sterility.
Yes, the HRF-M8 is designed with flame-retardant materials and chemical resistance, making it ideal for hospital and clinical use.
Yes, it supports multiple customization options including pedal color, connector type, and cable length to fit different medical devices.
The HRF-M8 supports standard wiring, 6.3mm audio connectors, DB9 serial ports, and USB connections.
The HRF-M8 offers similar performance to leading brands while providing better flexibility in customization and cost efficiency.

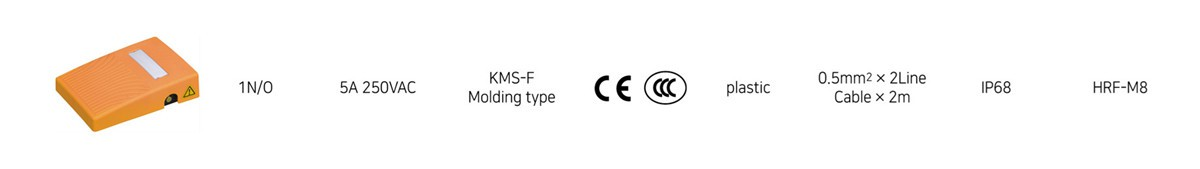

| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-M8 |  | 1A | 5A 250VAC | V05F-1 (UL,CE,CQC certified) |  | Plastic | RVV 20AWG ×2Line Cable×2m | IPX8 |
| HRF-M82 |  | 2A | 5A 250VAC | V05F-1 A(UL,CE,CQC certified) |  | Plastic | RV V20AWG ×4Line Cable×2m | IPX8 |
*Forothercustomizedmodels,pleasecontactwith usdirectly

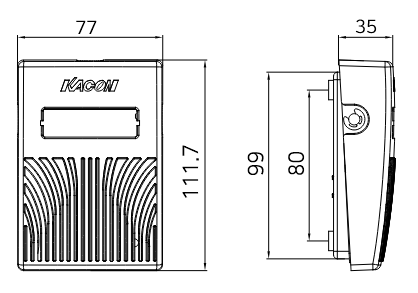

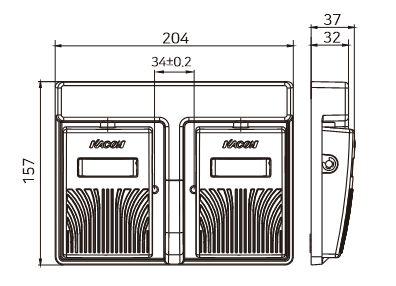

| HRF-M8 | HRF-M82 |
 |  |
