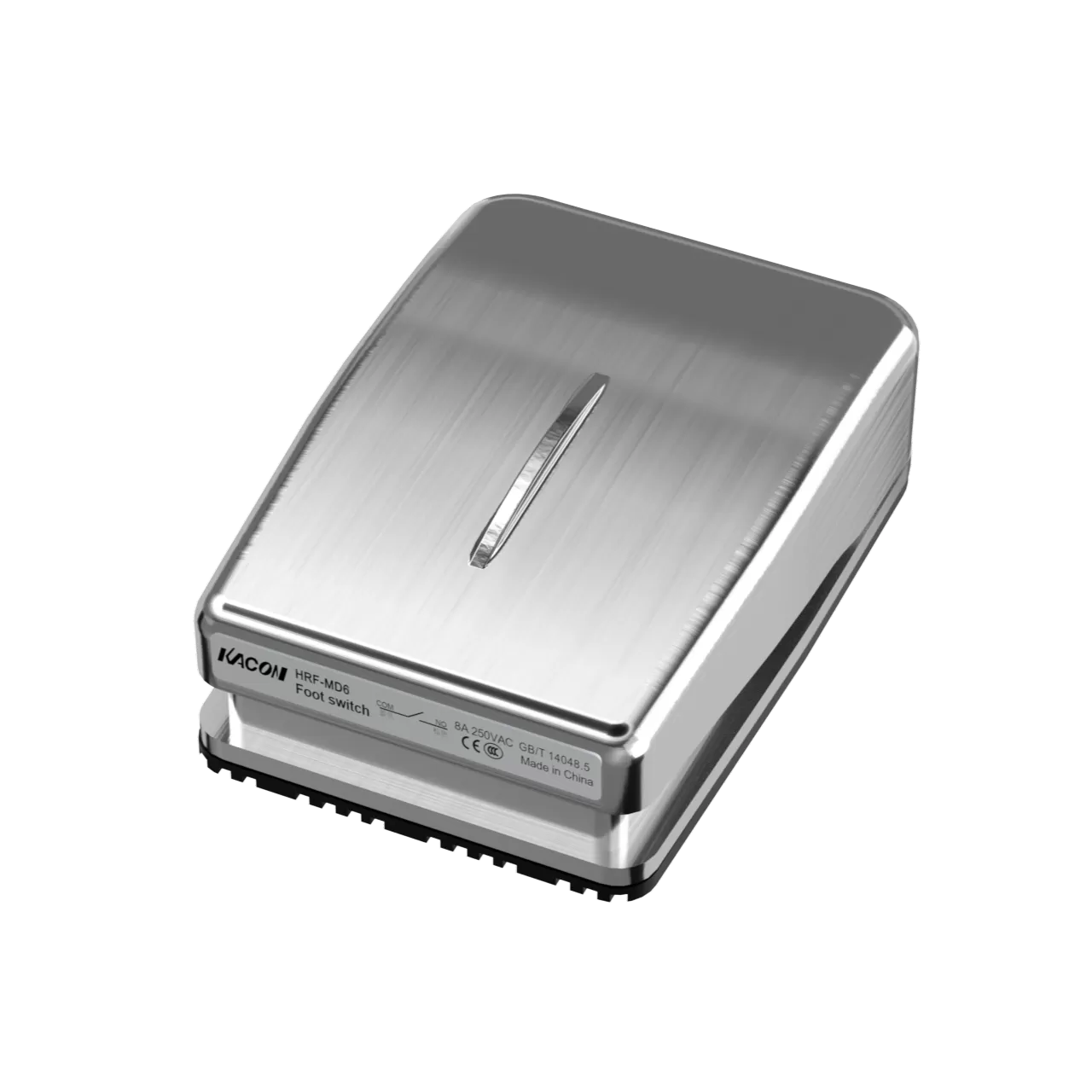

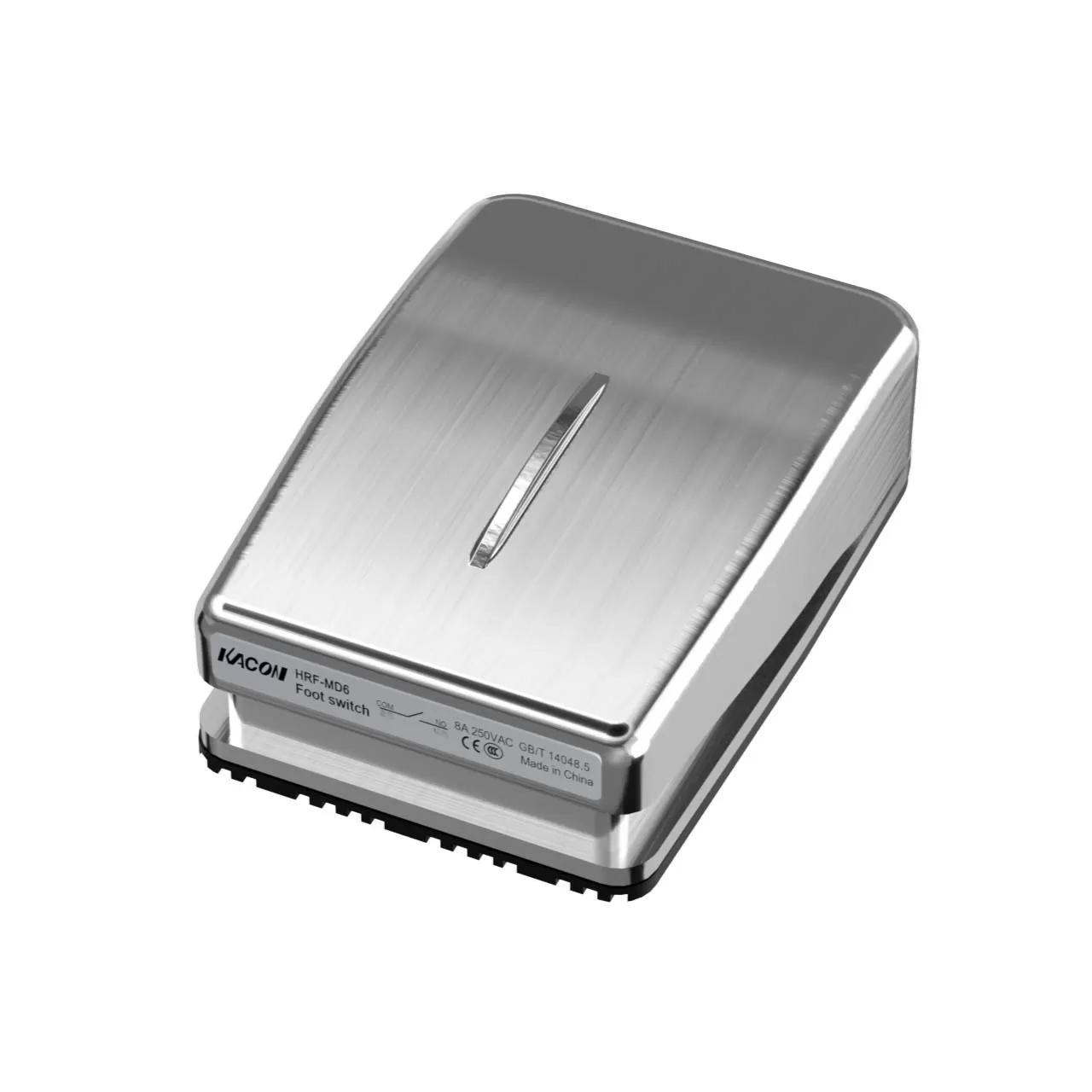

HRF-MD6 Series foot switch made of SUS 304 die-casting,which has high impact
resistance and deformation resistance.
Internal optional IPX8 waterproof micro movement,seamless welding of stainless
steel shell,suitable for damp workshop or Stable operation even in harsh environments
such as outdoor construction sites;
Ergonomic pedal curvature,responsive and effortless pedaling feedback,paired with
multiple mounting holes Adapt to different device requirements with wiring methods,
easy installation.
  | |
 Number of Switch | No mark:Single switch (2wires) 2:Double switches (3wires) |
 Built-in Switch | No mark:Standard micro switch F:Waterproof micro switch (IPX8) |
 Cable | No mark:20AWG *2m 5:20AWG*5m |
| Part Number | Picture | Contact Form | Rated Load | Built-in Switch | Certification | Material | Cable outlet | Degree of Protection |
| HRF-MD6 |  | 1C | 16A 250VAC | V15F-09C (UL,CUL,VDE, CE,KC,CQC certified) |  | SUS 304 | RVV 20AWG ×2Line Cable×2m | IP40 |
*Forothercustomizedmodels,pleasecontactwith usdirectly
| HRF-MD6 |
|
