Foot switches are an essential component in various industries, offering a hands-free method of controlling machinery or devices. Whether it's for medical equipment, industrial machinery, or even musical instruments, foot switches serve as a convenient and reliable control mechanism. In this guide, we'll explore the working principles of foot switches, their types, and their applications across different industries.

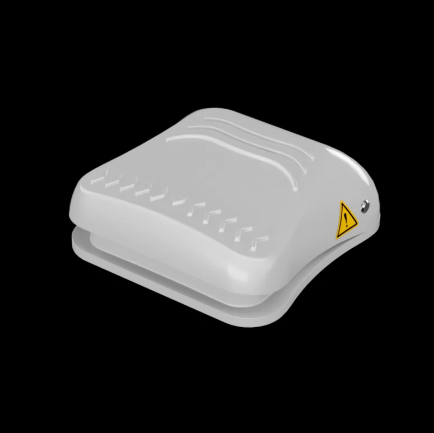

A foot switch is defined as a switch that is operated by pressing a pedal or actuator with the foot. Sometimes referred to as a “pedal switch” or “foot pedal,” these switches are designed for hands-free operation. Foot switches come in various styles and shapes to meet different requirements.
These switches are often preferred over conventional types due to their ability to provide greater and more convenient control, especially when both hands are occupied with other tasks.
Industrial foot switches improve operational efficiency by enabling hands-free machine control. In many industrial environments, operators must simultaneously handle materials, tools, or medical instruments while controlling equipment.
Compared with traditional hand-operated switches, foot switches provide:
● Faster machine operation
● Improved operator safety
● Better workflow efficiency
● Reduced hand fatigue
● More precise process control

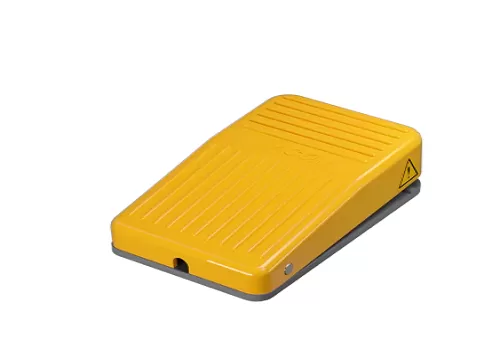

KACON industrial foot switches are designed for demanding industrial environments with durable housings, anti-slip pedal structures, and long mechanical lifespan.
The basic working principle of a foot switch involves a mechanical or electronic switch that is activated by pressing a foot pedal. This pedal can be either momentary or maintained, meaning it can either return to its original position once released (momentary) or stay in place until manually reset (maintained). Depending on the design, foot switches can either operate through direct mechanical linkage or via sensors, which send signals to the machine or device they are controlling.
In mechanical foot switches, pressing the pedal closes or opens a set of electrical contacts, allowing the flow of electricity to the connected system. In electronic foot switches, the pedal press activates a sensor that triggers the corresponding signal to control the device. The type of foot switch used depends on the level of control needed, the application, and the environment in which it is used.
Foot switches come in various designs, and understanding their types is crucial for choosing the right one for your needs. Below are some of the most common types:

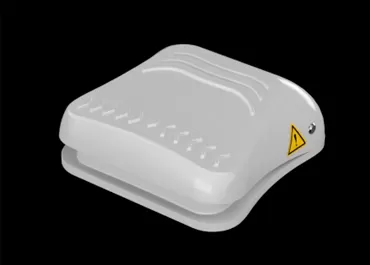

● Mechanical Foot Switches: These switches are simple in design, featuring a pedal connected to a spring mechanism that activates the switch when pressed. They are highly durable and are commonly used in industrial settings.
● Electronic Foot Switches: These switches use sensors instead of mechanical components to detect the foot pedal's action. They are more precise and can be integrated with digital systems, making them suitable for applications requiring high-level control.
● Momentary Foot Switches: These switches return to their default position once released, making them ideal for controlling processes that require temporary activation, like foot-controlled lights or machinery.
● Maintained Foot Switches: These switches stay in the activated position until manually reset. They are often used in applications where continuous activation is necessary, such as controlling heavy machinery or pumps.

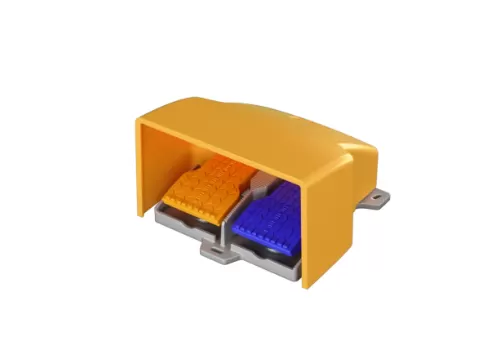

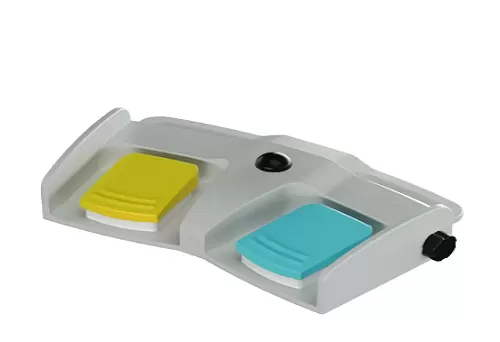

● Double and Triple Pedal Foot Switches: These foot switches have multiple pedals, allowing users to control multiple functions at once. They are commonly used in complex machines or medical devices where several operations need to be controlled simultaneously.
| Type | Features | Typical Applications |
| Momentary Foot Switch | Operates only while pressed | Welding machines, medical devices |
| Maintained Foot Switch | Stays activated until pressed again | Industrial machinery |
| Single Pedal Foot Switch | Basic ON/OFF control | General automation |
| Double Pedal Foot Switch | Multi-function control | CNC and robotics |
| Heavy Duty Foot Switch | High durability & protection | Harsh industrial environments |
● Medical equipment: Foot pedal switches are often used in medical devices to allow hands-free operation, ensuring sterility and convenience.
● Industrial machinery: Foot switches are used to control machinery, enabling operators to keep their hands free for other tasks (Figure 2).
● Musical instruments: Foot switch pedals are commonly used with electric guitars and other musical instruments to control effects and settings.
● Sewing machines: Foot pedal switches are essential for controlling the speed and operation of sewing machines.
● Office equipment: Foot switches can be used to operate dictation machines and other office equipment, allowing for hands-free control.
● Lamps and lighting: A foot switch for lamps provides a convenient way to turn lights on and off without using hands.
● Power tools: Foot pedal switches are used to control power tools, enhancing safety and efficiency.
● Computers and gaming: Foot switches can be used to control computer functions or gaming actions, providing an ergonomic alternative to hand controls.
Foot switches offer several advantages, including:
● Hands-Free Operation: The most obvious benefit is the ability to operate machines without using hands, leaving them free for other tasks.
● Increased Efficiency: By eliminating the need to stop and adjust equipment manually, foot switches help streamline operations, especially in fast-paced environments.
● Improved Safety: Foot switches reduce the need for operators to take their hands off machinery, preventing distractions and potential accidents.
● Customization: Foot switches can be customized for specific applications, offering different control mechanisms and pedal designs for various needs.
Like any switch, a foot switch is a break in a circuit that can be open or closed to control electricity flow through the circuit. A normally open (NO) foot switch blocks flow through the circuit when in the OFF state and allows flow when in the ON state. A normally closed (NC) foot switch operates oppositely. Some foot switches, like the Legrand mini foot switch, have terminals for normally open and normally closed, meaning they can be wired to operate as either type.
The following steps are an example of how a basic foot switch may be wired. Refer to a foot switch wiring diagram before attempting to wire.
1. Identify contacts: Locate the NO and NC contacts on the switch. These are usually marked on the switch housing or in the product documentation.
2. Prepare wires: Cut and strip the insulation from the ends of the wires that will be connected to the switch.
3. Connect NO contacts:
a. Connect one wire from the power source to one of the NO terminals.
b. Connect another wire from the other NO terminal to the load (device you want to control).
4. Connect NC Contacts (if needed):
a. Connect one wire from the power source to one of the NC terminals.
b. Connect another wire from the other NC terminal to the load.
5. Insulate connections: Ensure all connections are properly insulated to prevent short circuits or accidental contact.
6. Test the switch: Once wired, test the switch by applying foot pressure to ensure it toggles the connected device(s) correctly.
Yes, foot switches can be designed for use in hazardous environments. Industrial foot switches often come with protective casings and components that can withstand exposure to dust, moisture, and chemicals, ensuring reliable operation in challenging conditions.
The selection process should begin with the environment in which the switch will operate. In a dry and clean setting, a lower IP rating may be acceptable, while in wet or dusty spaces a higher level of protection is often necessary. The electrical specifications must align with the system requirements, and the operator’s workflow should be considered when choosing between momentary, maintained, or multi pedal options. Safety features such as guards or toe loops may be required depending on the risks of the application. In some cases, a special or custom design may be the best option when a standard switch does not fully meet the needs of the equipment.
Foot switches are generally easy to install and can be connected to most machinery or devices. Depending on the design, some may require minimal wiring, while others may be integrated into more complex systems. Be sure to follow the manufacturer’s instructions for optimal installation.
A momentary foot switch only operates while the pedal is pressed, while a maintained foot switch stays activated until pressed again.
Many industrial foot switches support IP65 or IP67 protection for use in dusty or wet environments.
Industrial foot switches can support hundreds of thousands to millions of operations depending on usage conditions and switch design.
KACON is a professional industrial control switch manufacturer providing automation control solutions for global industries.
KACON foot switches offer:
● Industrial-grade durability
● Ergonomic pedal structures
● Waterproof protection
● Long electrical lifespan
● Multiple pedal configurations
● OEM & customization support
KACON foot switches are widely used in industrial automation, medical equipment, packaging systems, and factory machinery worldwide. Contact KACON for catalogs, pricing, and technical support.
